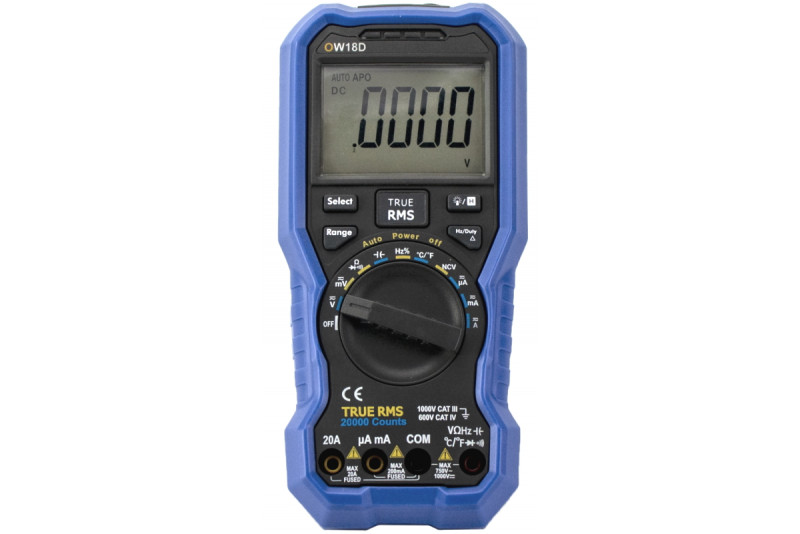

Owon OW18D DIGITAL MULTIMETER TRMS

OWON® OW18D is a digital multimeter. Large 4 1/2 digit backlit LCD display with bar graph. True RMS (TRMS) measurement ensures truer measurement results for AC voltage and AC current measurements compared to traditional multimeters. Automatic shutdown function to extend battery life. You can measure AC/DC voltage and current, resistance, capacitance, frequency, temperature, diode test and audible continuity test.

Features

• 4 1/2 bit resolution (20000)
• TrueRMS measurement
• Flashlight function
• Non-contact voltage detection (NVC)

Specifications

• Large LCD display 69x52mm with 4 1/2 display (19999)
• Input impedance: 10MΩ
• Sample rate: 3x/s
• DC voltage measurement: 20mV-1000V, ±(0.1%+2dig)
• AC voltage measurement: 20mV-750V, ±(0.5%+10dig)
• NVC voltage measurement = displays AC voltage frequency
• DC current measurement: 200μA-20A, ±(0.5%+10dig)
• AC current measurement: 200μA-20A, ±(0.8%+10dig)
• Resistance: 200Ω-200MΩ, ±(0.3%+1dig)
• Capacitance: 2nF~20mF, ±(3%+10dig)
• Frequency: 20Hz-20MHz, ±(0.1%+4dig)
• PWM pulse duty cycle: 0.1%-99.9%, ±(1.2%+3dig)
• Temperature: -50...+400°C, ±(1.0%+3C)
• Continuity test: beeps when below 30Ω
• Built-in LED flashlight
• Protection class: CAT III 1000V, CAT IV 600V
• Battery: 9V (battery included)
• Fuses: F200mA/250V (resetable) and F20A/250V

Delivery includes: OW18D multimeter, measuring leads (wires) max. 10 A, K-type thermocouple, 9V pin battery, user manual in English.
