- function as 3 in 1 : datalogger + multimeter + temperature meter
- multi-connection (more than one device) supported via mobile app
- the change trend analysis accessible via special chart mode
- voice warning supported, which assures measurement safety
- smart voice-reading accessible
- 4 1/2 -digit full scale reading, achieving much higher measurement accuracy than 3(3/4)-digit counterparts
- smart power-off option extending battery life
- true RMS value available
- offline recording function
- Bluetooth 2.0 version - supports mobile device with Android 4.0 or above OS
- Bluetooth 4.0 version - supports mobile device with Android 4.3 or above / iOS 7.0 or above OS, and equipped with ble 4.0 module
Specifications
DC Voltage (V)
- 220mV; 0.01 mV; ±(0.1%+5dig)
- 2.2V; 0.1 mV ±(0.1%+2dig)
- 22V; 1mV; ±(0.1%+2dig)
- 220V; 10mV; ±(0.1%+2dig)
- 1000V; 0.1 V; ±(0.1%+5dig)
AC Voltage
- 220mV; 0.01 mV; ≤1kHz, ±(1.0%+10dig) or ＞1kHz, ±(1.5%+50dig)
- 2.2V; 0.1 mV; ≤1kHz, ±(0.8%+10dig) or ＞1kHz, ±(1.2%+50dig)
- 22V; 1mV; ≤1kHz, ±(0.8%+10dig) or ＞1kHz, ±(1.2%+50dig)
- 220V; 10mV; ≤1kHz, ±(0.8%+10dig) or ＞1kHz, ±(2.0%+50dig)
- 750V; 0.1 V; ≤1kHz, ±(1.2%+10dig) or ＞1kHz, ±(3.0%+50dig)
DC Current (A)
- 220μA; 0.01 μA; ±(0.5%+10dig)
- 2200μA; 0.1 μA; ±(0.5%+10dig)
- 22mA; 1 μA; ±(0.5%+10dig)
- 220mA; 10 μA; ±(0.8%+10dig)
- 20.00A [1]; 1mA; ±(2%+25dig)
AC Current (A)
- 220μA; 0.01 μA; ≤1kHz, ±(0.8%+10dig) or ＞1kHz, ±(1.2%+50dig)
- 2200μA; 0.1 μA; ≤1kHz; ±(0.8%+10dig) or ＞1kHz, ±(1.2%+50dig)
- 22mA; 1 μA; ≤1kHz, ±(1.2%+10dig) or ＞1kHz, ±(1.5%+50dig)
- 220mA; 10 μA; ≤1kHz, ±(1.2%+10dig) or ＞1kHz, ±(1.5%+50dig)
- 20.00A [1]; 1 mA; ≤1kHz, ±(1.5%+10dig) or ＞1kHz, ±(2.0%+50dig)
Resistance:
- 220Ω; 0.01 Ω; ±(0.5%+10dig)
- 2.2kΩ; 0.1Ω; ±(0.5%+10dig)
- 22kΩ; 1Ω; ±(0.5%+10dig)
- 220kΩ; 10Ω; ±(0.5%+10dig)
- 2.2MΩ; 100Ω; ±(0.8%+10dig)
- 22MΩ; 1kΩ; ±(1.5%+10dig)
- 220MΩ; 10kΩ; ±(5.0%+10dig)
Capacitance (F)
- 22nF; 1pF; ±(3.0%+5dig)
- 220nF; 10pF; ±(3.0%+5dig)
- 2.2μF; 100pF; ±(3.0%+5dig)
- 22μF; 1 nF; ±(3.0%+5dig)
- 220μF; 10 nF; ±(3.0%+5dig)
- 2.2mF; 100 nF; ±(4.0%+10dig)
- >220mF
Frequency
- 22.00Hz; 0.01Hz; ±(0.1%+4dig)
- 220.0Hz; 0.1 Hz; ±(0.1%+4dig)
- 22.000kHz; 1 Hz; ±(0.1%+4dig)
- 220.00kHz; 10 Hz; ±(0.1%+4dig)
- 22.00Hz; 100 Hz; ±(0.1%+4dig)
- 2.2000MHz; 1k Hz; ±(0.1%+4dig)
- 22.000MHz; 10k Hz; ±(0.1%+4dig)
- >220MHz
Duty Ratio (%)
- 5.0% - 94.9% (typical value：Vrms=1 V, f=1 kHz); 0.1%; ±(1.2%+3dig)
- 0.1% - 99.9%(≥1 kHz) 0.1%; ±(2.5%+3dig)
Temperature (°C)
- (－50 ℃) – (400℃); 0.1 ℃; ±(1.5%+5dig)
Record Period: 168 hours（7 days )
Record Length: 10,000 points
Battery: 3V（1.5V x 2）AA
Dimension(WxHxD): 85 x 185 x30 mm
Device Weight: 0.32 kg

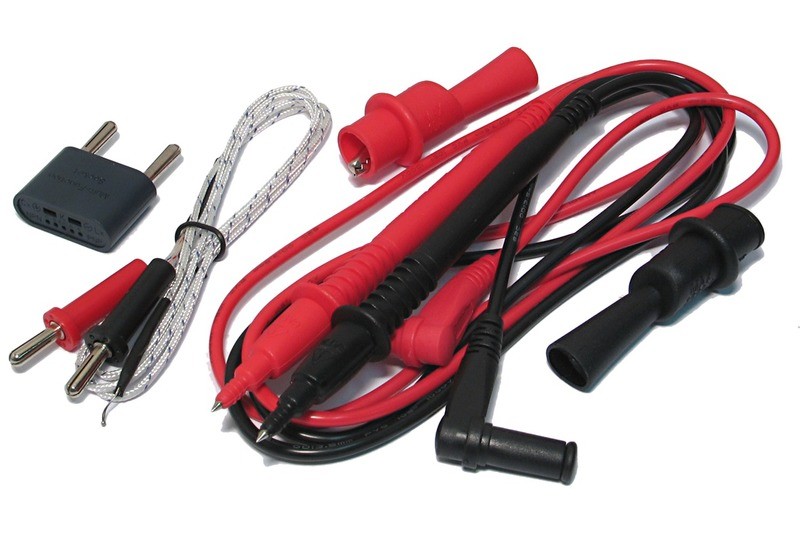

Accessories: Manual; Multimeter Lead; Soft Bag (optional); Alligator Clip (optional); K-type Thermocouple; Multi-function
