Description

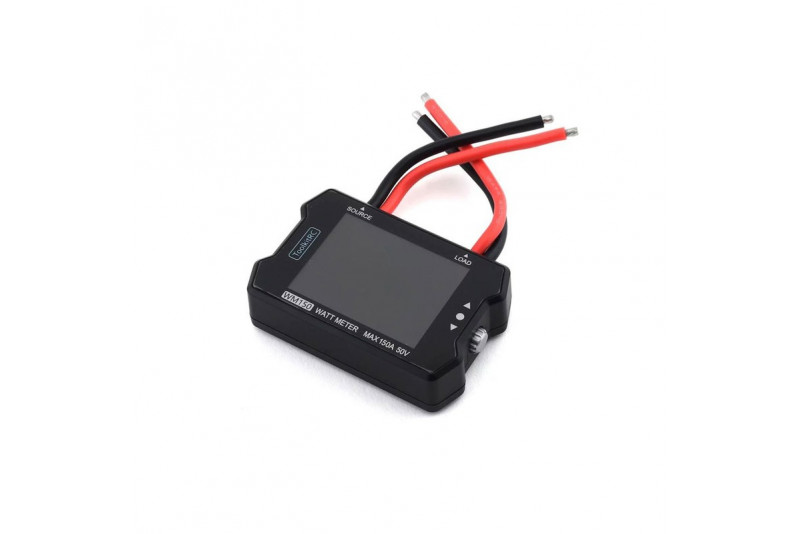

Advanced wattmeter with a 2.4" TFT LCD display with a resolution of 320x240 pixels. It allows you to measure the flowing current with a voltage of up to 50 V and an intensity of 150 A. The measured values are presented in the form of graphs and indicators on the display in a very user-friendly way.
A high level of data sampling is ensured by a built-in microcontroller with an ARM COrtex-M3 core equipped with a 12-bit ADC converter. The device additionally has the function of generating a modeling PWM signal, which allows you to quickly test servos or ESC controllers. The meter can be connected to a computer via the USB interface, thanks to which the user can update the software. It will be used in the workshop when analyzing the work of drones or RC models.
Features
- Input voltage: 1 to 50V@ MAX 150A
- USB input: 5.0V@1A
- Firmware update: USB3.0
- Signal port: 1000us-2000us @50Hz
- 2.4" TFT LCD display, resolution 320x240 pixels
- Dimensions: 80 x 54 x 23mm
- Weight: 82g
