PeakTech P 2795 Tachometer with laser

PEAK 2795

2 Items

In stock

Manufacturer homepage

102,00 €

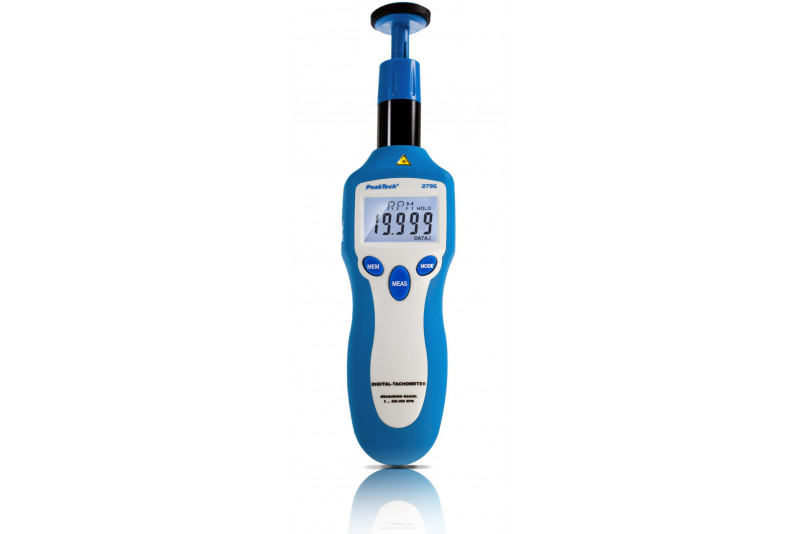

PeakTech® P 2795» Tachometer photo-contact type with laser

This digital tachometer with a digital 5-digit 13 mm LCD display, which has a backlight, provides a fast and accurate measurement of the speed and surface speed of rotating objects. Through the contactless or with the measuring adapter for measurements by direct contact to the object to be measured, various speeds can be determined and recorded with the PeakTech 2795.

Features

  • Measurement type: rotation speed (RPM), total revolutions (REV), frequency (Hz), surface speed (m/min; In/min; Ft/min; Yd/min) and length (m, In, Ft, Yd)
  • Wide measure range and high resolution
  • 40 reading memories: MAX, MIN, AVG, DATA
  • Laser targeting
  • Low battery indication
  • Auto ranging

Specifications

Measuring range1 - 99,999 rev
Measuring range2 - 99,999 rpm (non-contact)
Measuring range2 - 20,000 rpm (contact)
Resolution0.1 rpm (2 - 9,999.9 rpm)
1 rpm (over 10,000 rpm)
Sample rate2/sec. (over 120 rpm)
Detecting distance50 mm to 500 mm
Accuracy± 0.05 % + 1 dgt.
Laserclass 2; < 1 mW
Operating voltage9 V-battery
Dimensions (WxHxD)  58 x 160 x 39 mm3

Package includes

  • Peaktech 2795

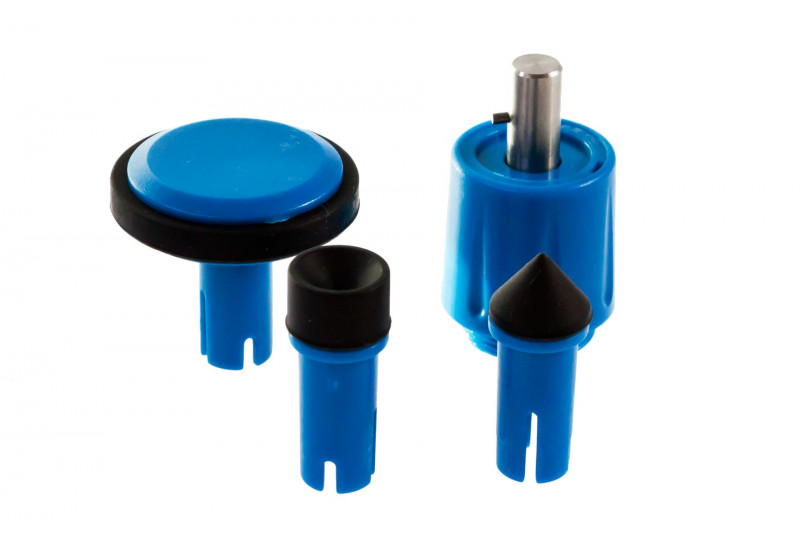

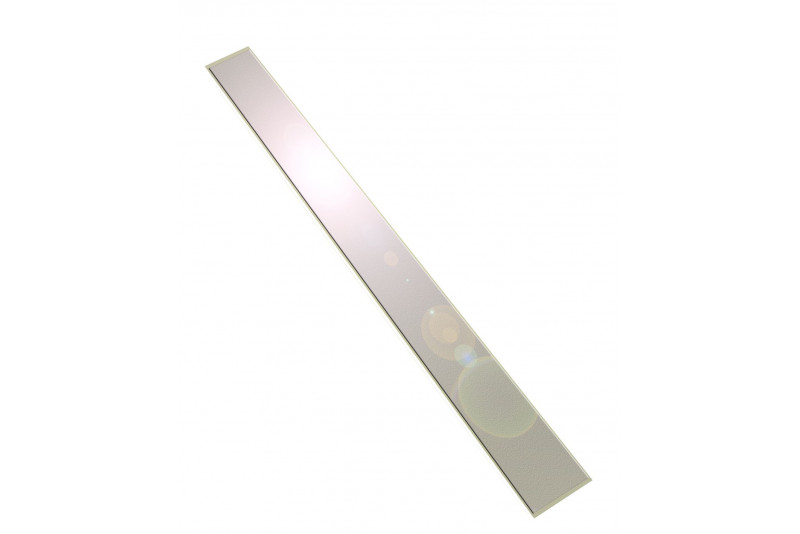

  • Accessories: carrying case, batteries, adhesive reflecting tape marks, RPM adaptor, surface speed test wheel and manual

EAN4250569400612
Lowest price within 30 days102,00 € incl.vat
click for more info
ManufacturerPeakTech
Manufacturer's modelP 2795
User manualsEnglish, Finnish by request (pdf)
