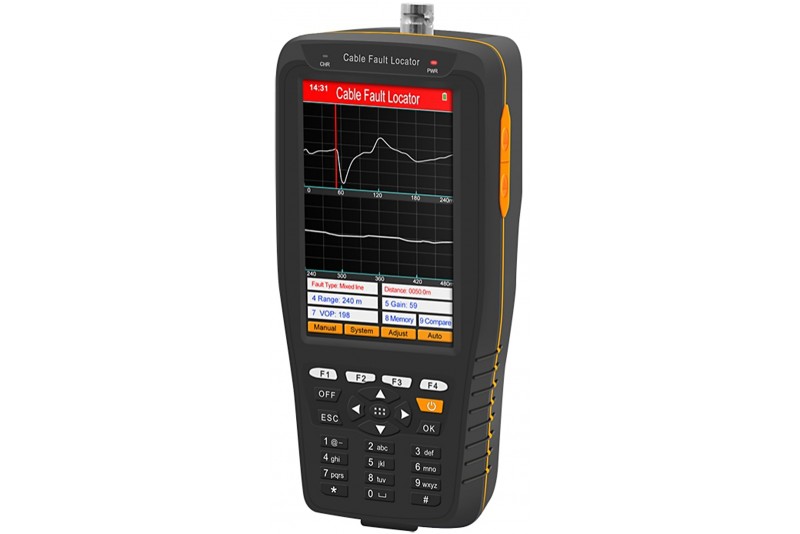

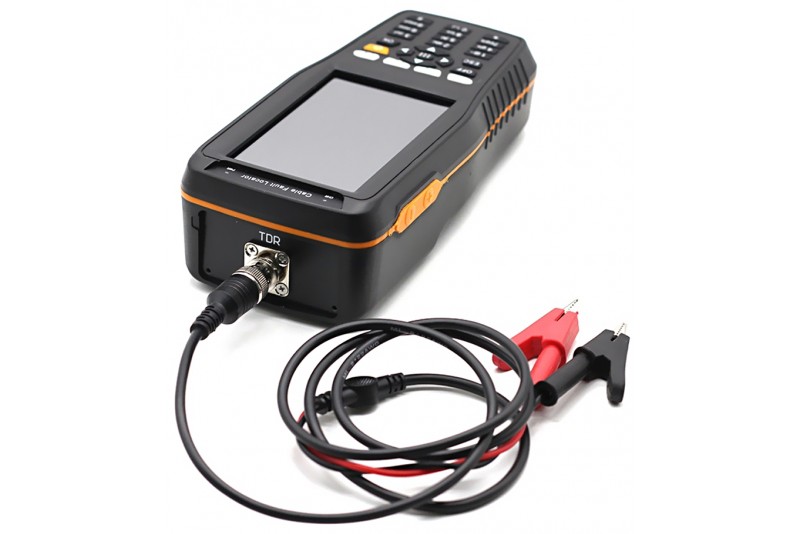

TC-110 TDR CABLE FAULT LOCATOR

TC-110 cable Fault Locator is used for automatically testing the precise location of the coaxial cable
and communication cable’s broken wires, mixed wires, ground gas and related cable fault.

Features

• DAGC (Digital Gain Automatic Control) system: The gain can be modified digitally. Eliminate the waveform distortion caused by the potentiometer knob. It can also do pure linear adjustment, which is convenient for manual testing.
• Digital waveform automatic recognition technology: automatically recognize the waveform that are difficult for human to determine.
• Using ARM CPU with FPGA technology: can quickly perform various complex operations and determine fault waveform accurately.
• Waveform comparison function, it is convenient to compare the test waveform of the fault cable and the normal cable, and clearly find the fault point location.
• Large-screen LCD color display, humanization design of the interface menu, fast digital press button, easy for users to operate.
• High-power lithium battery, which can be used for up to ten hours (with specialized power charger).
• With data interface to support customers upgrade the system remotely.

Specifications

• Max measurement range (Manual): 8km
• Max measurement range (Auto): 4km
• Pulse width: 30ns ~ 50us
• Pulse amplitude: 0 ~ 30V
• Max resolution: 0.5m
• Dead zone: 0m
• LCD: 480*800 color screen
• Battery: 4400mAH lithium-ion battery
• Power Consumption: 1W
• Weight: 0.4kg
• Dimensions: 190*84*52mm
• Working temperature: -15℃ ~ +45℃
• Storage temperature: -20℃ ~ +55℃
