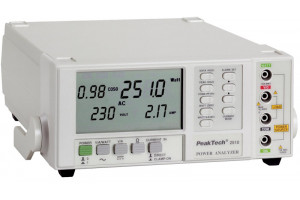

PeakTech 2510 POWER ANALYZER

PeakTech® P 2510 is a multifunctional power analyzer. Its large LCD screen displays wattage, power factor, voltage, and current simultaneously for user convenience.

Key Features

• High precision with 0.1 W resolution
• Supports direct input, clamp probes, and current transformers
• Large 93 x 52 mm LCD display
• Auto range function for easy operation
• Data Hold & Peak Hold functions
• Configurable high/low alarms
• Battery or AC/DC adapter operation
• Safety standard EN 61010-1, CAT II 600 V

Technical Specifications

• Voltage: 0.1 V to 600 V AC/DC
• Current: 0.01 A to 10.00 A (direct input), up to 1000 A (probe)
• Power: 0.1 W to 6 kW (direct), up to 999.9 kW (probe)
• Power factor: 0.01 to 1.00
• Energy consumption: 0.001 Wh to 9999 kWh
• Resistance: 1 Ω to 19.99 kΩ
• Frequency: 10.0 Hz to 999 Hz
• Dimensions: 280 x 210 x 90 mm
• Weight: 1.6 kg

Package Includes

• PeakTech® P 2510 Power Analyzer
• RS-232C interface cable
• Test leads
• User manual
• Batteries
• Windows-compatible software

Links

• 2510 User Manual EN (pdf)
