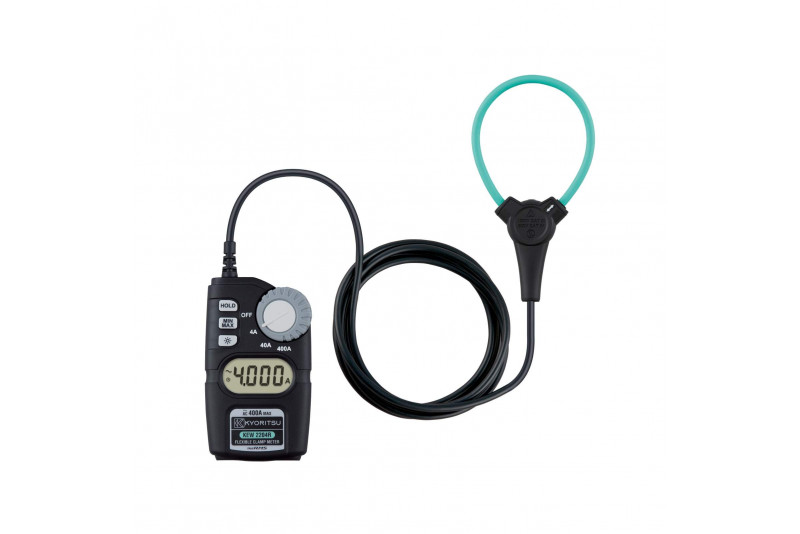

Kyoritsu AC CLAMP METER 3000A/150mm View larger

Kyoritsu AC CLAMP METER 3000A/150mm

KEW 2210R

By request only

290,85 €

Kyoritsu KEW 2210R - flexible TRMS digital AC clamp meter, Ø 150mm, AC 3000 A

Features

  • Flexible and light weight clamp sensor
  • Wide reading range up to 3000A
  • True RMS
  • MIN MAX function
  • Backlight LCD display
  • IEC 61010-1 (CAT IV 600V / CAT III 1000V)

Specifications

AC A (RMS)
Range30.00/300.0/3000A
Accuracy±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)
Crest factor
(CF)		Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times of the max values of each range.
Conductor sizeφ150mm max.
Influence of
Conductor position		Additional ±3% (max.) depending on the distance from the center position
Overload protection5000A AC for 10 seconds
Applicable standardsIEC 61010-1, IEC 61010-2-032
CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2
IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Operating temperature
& humidity		0 - +50℃,less than 80% RH (without condensation)
Storage temperature
& humidity		-10 - +60℃,less than 70% RH (without condensation)
Power sourceR03 / LR03(AAA)(1.5V)×2
※Continuous measuring time：approx.120hours
(Auto power off：approx.15 minutes)
Dimensions120(L)×70(W)×26(D)：Display unit
φ8.5mm approx.：Cable diameter
1.8m approx.：Cable length
Weight300g approx. (including batteries)
Included Accessories9174 (Carrying case)
LR03(AAA)×2, Insruction manual
click for more info
ManufacturerKyoritsu (Kewtech)
Manufacturer's modelKEW 2210R
Delivery time6-12 weeks
Measures120 x 70 x 26 mm (display unit)
Weight300g

Tech specs KEW 2210R

Download (1.93M)
