Shelly Pro 3

SHELLY PRO 3

Currently unavailable

Manufacturer homepage

120,93 €

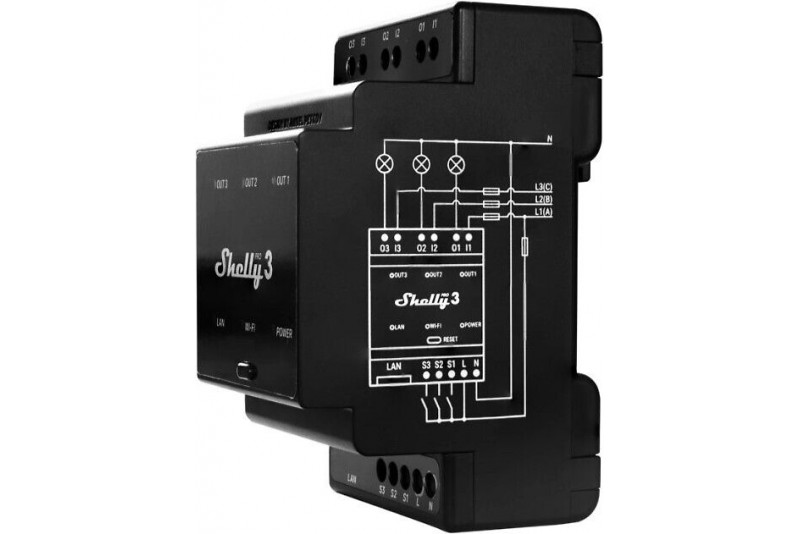

Shelly Pro 3 - is a 3-phase Wi-Fi relay that supports a maximum load of 48 A (16 A/channel), and mounts directly on a DIN rail.

Shelly Pro 3 DIN rail relay is a 3-phase Wi-Fi relay that supports a maximum load of 48 A (16 A / channel). The relay is installed directly on a DIN rail, and it can be used to control lights, household electrical appliances, irrigation systems, pool systems, and heaters. Shelly Pro 3 can operate locally in a Wi-Fi network or be connected to a cloud service. By connecting Shelly Pro 3 to the internet via Wi-Fi, it enables device management from anywhere. Through the built-in web interface, you can monitor and control the device as well as adjust its settings.

Note! You will need an electrician's assistance for fixed electrical network installations.

Features

  • LAN, Wi-Fi, and Bluetooth connections
  • No need for a separate control unit

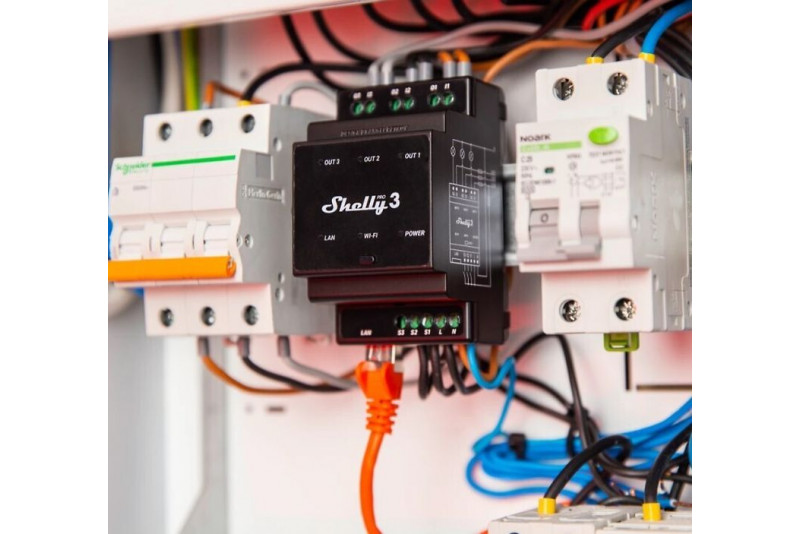

  • DIN rail installation
  • Fireproof casing (V-0) with internal overheating protection
  • Google Assistant, Amazon Alexa
  • Shelly Cloud application - Android and iOS support
  • Smartthings support
  • mjS script support

Specifications

  • Model: Shelly Pro 3
  • Nominal voltage: AC: 110-240 V 50/60 Hz
  • Maximum load: 48 A (16 A / channel)
  • Maximum switching voltage: 240 V AC / 30 V DC
  • Power consumption: < 3 W
  • Number of channels: 3
  • Operating temperature: -20ºC ... +40ºC
  • Energy consumption measurement: no
  • Overheating protection: yes
  • Overload protection: yes
  • Overvoltage protection: yes
  • Works without neutral wire: no
  • Potential-free contact: yes
  • Bluetooth: yes
  • Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
  • Wi-Fi frequency: 2412 - 2472 MHz
  • Wi-Fi transmission power: 13.35 dBm
  • Wi-Fi range: 50 m outdoors, 30 m indoors
  • Material: plastic
  • Dimensions: 96 x 53 x 59 mm
EAN3800235268094
click for more info
ManufacturerShelly (Allterco Robotics)
Manufacturer's modelShelly Pro 3
Measures96 x 53 x 59 mm
Operating temperature-20...+60°C
ProcessorESP32
Memory FLASH8MB
