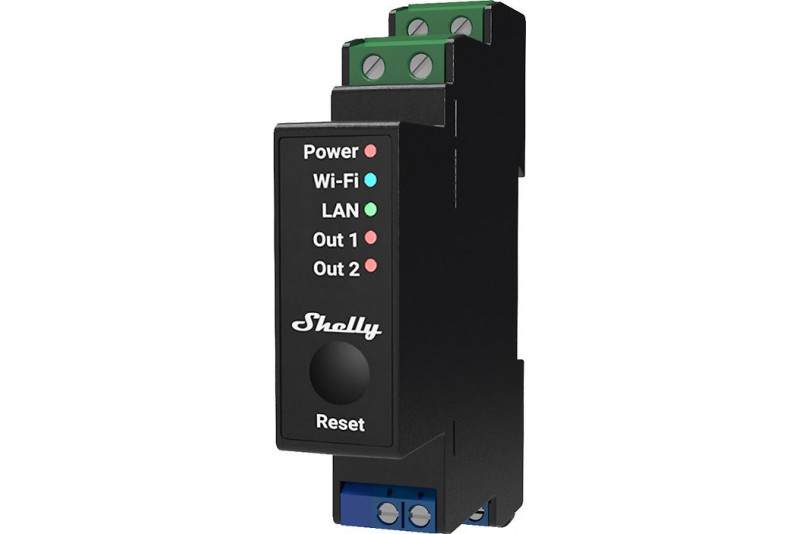

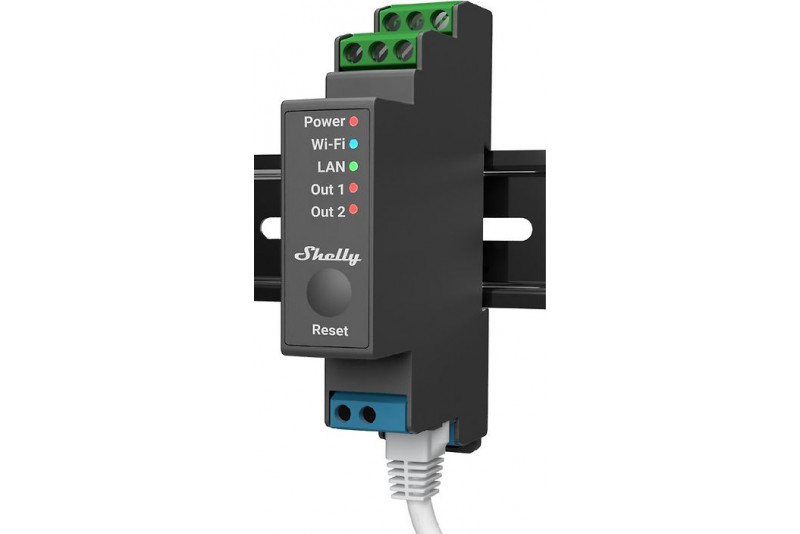

Shelly Pro 2PM

Shelly Pro 2PM is a 2-phase Wi-Fi relay with energy consumption measurement, supporting a maximum load of 25 A (16 A / channel). The relay is installed directly on a DIN rail, and it can be used to control lights, household electrical appliances, irrigation systems, pool systems, and heaters. Shelly Pro 2PM can operate locally in a Wi-Fi network or be connected to a cloud service. By connecting Shelly Pro 2PM to the internet via Wi-Fi, it enables device management from anywhere. Through the built-in web interface, you can monitor and control the device as well as adjust its settings.

Note! You will need an electrician's assistance for fixed electrical network installations.

Features

• LAN, Wi-Fi, and Bluetooth connections
• No need for a separate control unit
• LED light indicator
• DIN rail installation
• Fireproof casing (V-0) with internal overheating protection
• Amazon Alexa, Google Assistant support
• Shelly Cloud application - Android and iOS support
• Smartthings support

Specifications

• Model: Shelly Pro 2PM
• Nominal voltage: AC: 110-240 V 50/60 Hz
• Maximum load: 25 A (16 A / channel)
• Power consumption: < 3 W
• Number of channels: 2
• Operating temperature: -20ºC ... +40ºC
• Energy consumption measurement: yes
• Overheating protection: yes
• Overload protection: yes
• Works without neutral wire: no
• MQTT and WSS support
• Bluetooth: yes
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Wi-Fi frequency: 2412 - 2484 MHz
• Wi-Fi transmission power: 13.34 dBm
• Wi-Fi radio signal strength: 1 mW
• Wi-Fi range: 50 m outdoors, 30 m indoors
• Material: plastic
• Dimensions: 94 x 19 x 69 mm
