Note! Not for professional use. Do not use this device to operate mains voltage devices. Only for voltages under 50VAC/DC.
Description

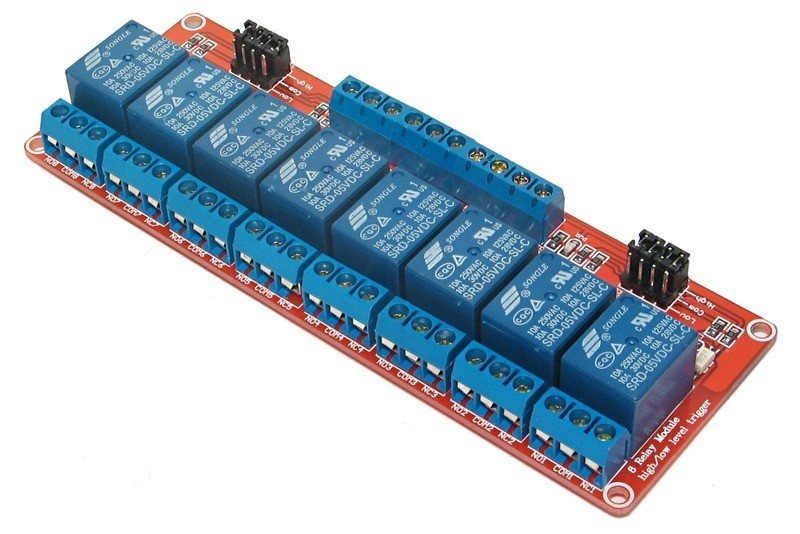

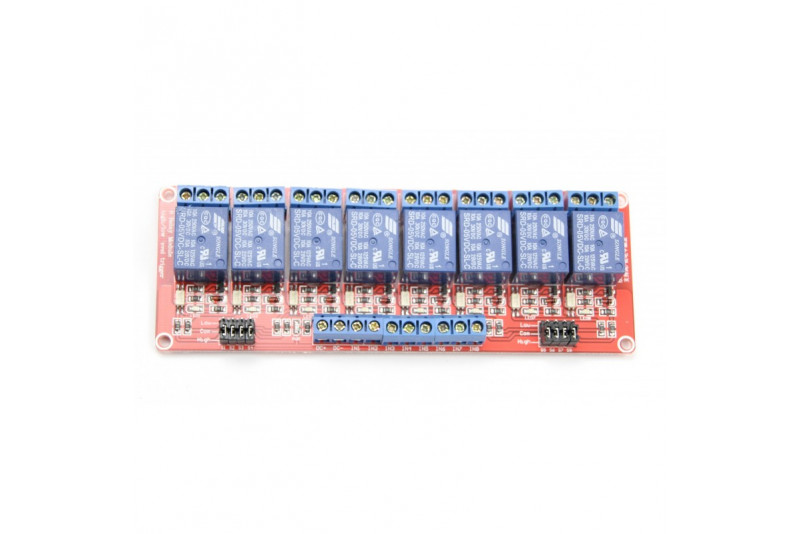

The module allows independent control of eight loads connected to the output, and the optical separation of inputs from relays protects the device controlling the module against damage. This module operates at 5V and can control the load with the maximum current consumption of 10A (at 250V AC) in NO / NC mode. Both input and output signals are connected to the screw connectors, which guarantees an effective and reliable connection. The module also has the ability to change the state at which the relay should be activated - it can be triggered by a low or high state.
Properties
- Module with eight relays
- Input optoisolation
- Operating voltage: 5 V DC
- Power consumption: approx. 80 mA / channel
- It has LEDs for channel operation and module power supply
- The possibility of independent configuration of the triggering state
- Screw connectors for input and output signals
- NO and NC contacts are output
- It has mounting holes with a diameter of 3 mm
- Dimensions: 141 x 50 x 20 mm
Included
- Module with eight relays
