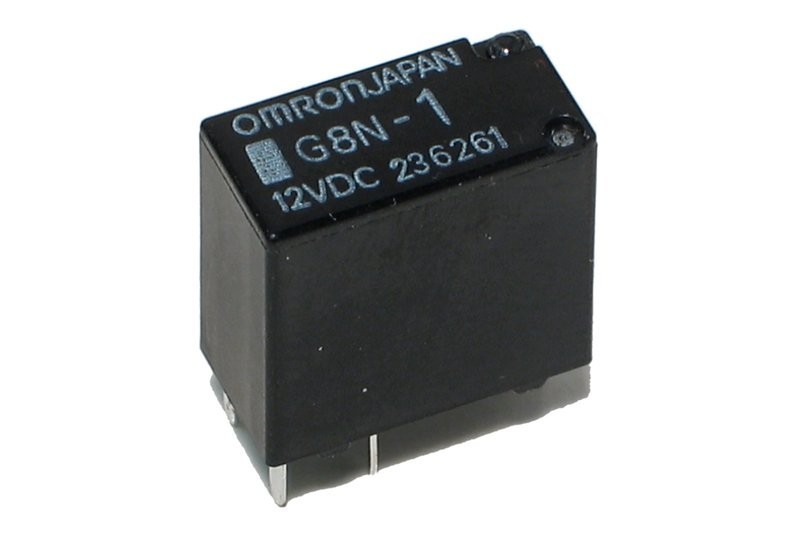

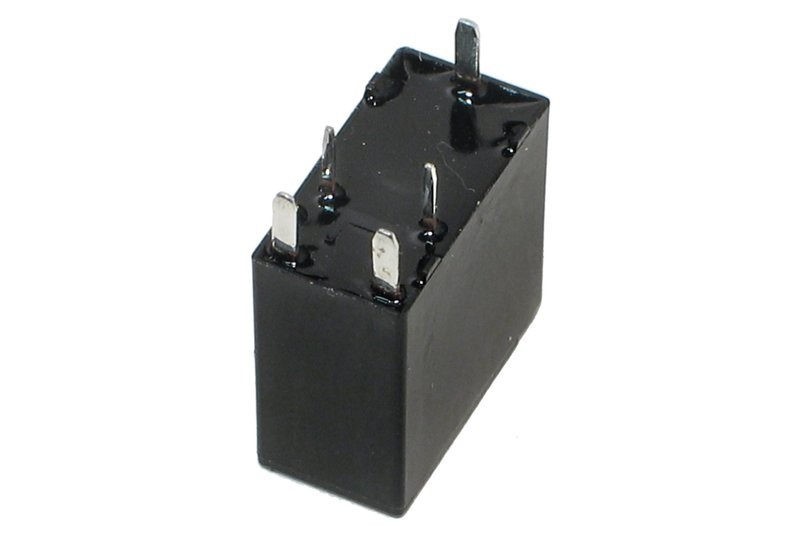

30A MINIATURE FOR THE AUTHOR ON A CIRCUIT CARD
- control voltage 12VDC
- coil resistance 220 ohm
- control power 640 mW
- max. switching current of the contacts. 30A @16VDC
- contacts SPDT
- for printed circuit board (1 Form C)
- operating temperature -40...+85°C
As a tip, it can be used to replace the Taiko TB1-100ML 12VDC inside a Mazda 6 turn signal.
