Grove One Wire Temperature Sensor 2m (DS18B20)

SEEED 101990019

8 Items

In stock

Manufacturer homepage

15,22 €

Seeed Studio 101990019 - Grove One Wire Temperature Sensor - DS18B20

PRODUCT DETAILS

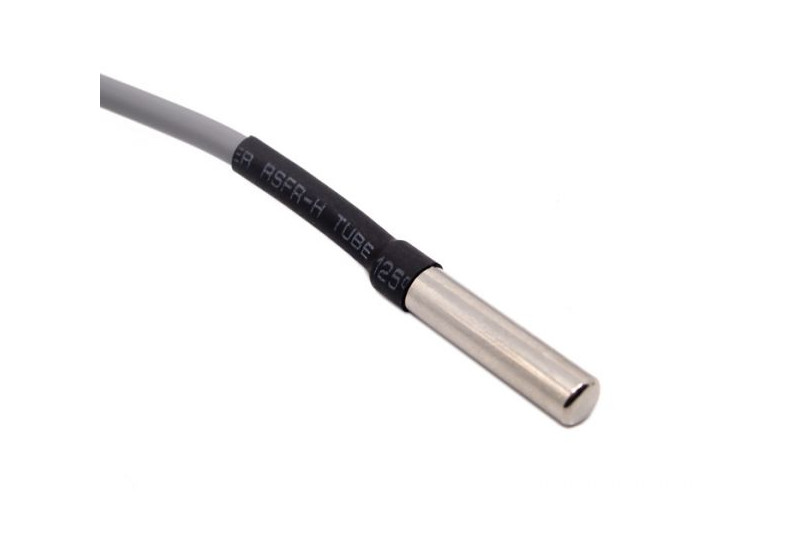

This 2m long One Wire Temperature Sensor - DS18B20 has a waterproof probe and long wire shape, suitable for immersive temperature detection. The chip inside this sensor is DS18B20 which is widely adopted.

The original one includes three wires inside. You need to add extra resistance to get it working. So for this sensor, Seeed Studio adjusted it into a Grove port and had a resistance pre-assembled inside so that you can use it as a regular Grove sensor. This makes it an easy connected one-wire temperature sensor for Seeeduino, which is derived from Arduino and compatible with all Arduino platforms.

Features

  • Requires only one wire for data interface
  • Waterproof
  • Grove compatible
  • Accepts 3.0V to 5.5V power supply
  • Wide temperature range: -55°C to +125°C
  • High accuracy: ±0.5°C( -10°C to +85°C)

Specification

Operating Voltage3.0-5.5V
ChipDS18B20
Length2m
Operating Temperature-55°C to +125°C

Part List

  • 1 x One Wire Temperature sensor

Links

click for more info
ManufacturerSeeed Studio
Manufacturer's model101990019
Length2,0m
