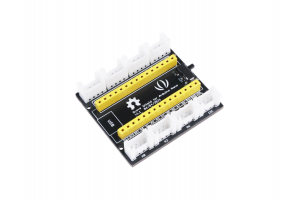

Grove Shield for Arduino Nano View larger
Previous Next

Grove Shield for Arduino Nano

SEEED 103100124

2 Items

In stock

Warning: Last items in stock!

Manufacturer homepage

7,30 €

Seeed Studio 103100124 - Grove Shield for Arduino Nano

PRODUCT DETAILS

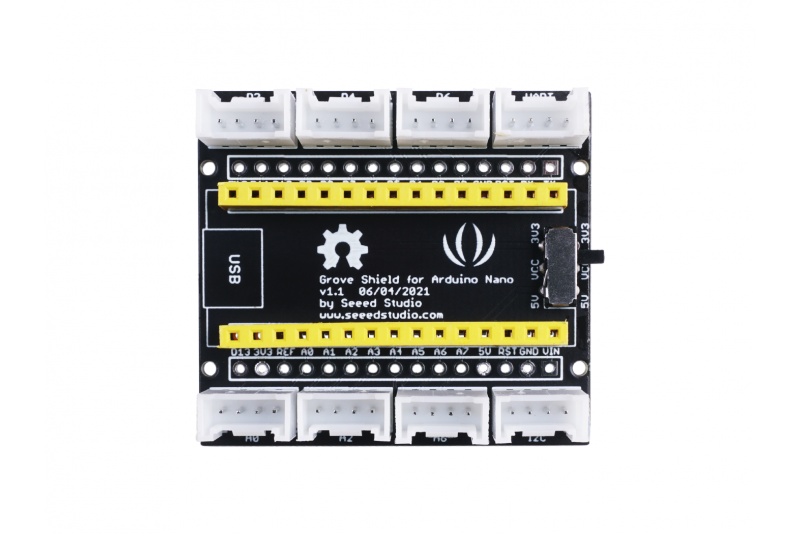

Grove Shield for Arduino Nano provides you a simple way to connect with Arduino Nano and also Seeeduino Nano.This shield help you get rid of breadboard and jumper wires by pulling out the pins of the motherboard and expands to 8 Grove connectors. V1.1 version supports the Arduino Nano 33 series development board.

As the name indicate this shield is made for Arduino Nano, but it also can be used with Seeeduino Nano. This shield pulls out the pins of the motherboard and expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analog connectors, 1 Grove I2C connector, and 1 Grove UART connector.

With the help of the Grove system, you can connect hundreds of Grove sensors, Grove actuators and Grove displays to the Arduino Nano with a simple plug.

Seeed Studio has updated Grove Shield to V1.1, supports the Arduino Nano 33 series development board.

V1.1 Change Note:

  • Add VCC 3.3V/5V Switch

V1.1 Support List:

  • Arduino Nano
  • Seeeduino Nano
  • Arduino Nano Every
  • Arduino Nano 33 IoT*
  • Arduino Nano 33 BLE*
  • Arduino Nano 33 BLE Sense*

Attention

To work with Arduino 33 serial boards, please switch the VCC power to 3.3V. If the VCC power supply is switched to 5V, the development board may be damaged!

Part List

1x Grove Shield for Arduino Nano

Links

click for more info
ManufacturerSeeed Studio
Manufacturer's model103100124
CompatibleArduino Nano
