Grove LoRa-E5 (STM32WLE5JC),EU868,LoraWAN

SEEED 113020091

1 Item

In stock

Warning: Last items in stock!

Manufacturer homepage

29,09 €

Seeed Studio 113020091 - Grove - LoRa-E5 (STM32WLE5JC), EU868/US915, LoRaWAN supported

PRODUCT DETAILS

Features

  • LoRa-E5 (STM32WLE5JC) embedded
  • Support LoRaWAN protocol on EU868/US915 frequency band
  • Ultra-long transmitting range up to 10km (Ideal value in open space)
  • Easy control by AT command via UART connection
  • Rapid prototyping with plug-and-play Grove interfaces
  • Ultra-low power consumption and high performance

As an upgrade of Seeed Studios old version - Grove - LoRa Radio - powered by RFM95 ultra-long-range Transceiver Module, Grove LoRa-E5 embedded with LoRa-E5 STM32WLE5JC Module is a high-performance and easy-to-use wireless radio LoRa module supporting LoRaWAN protocol.

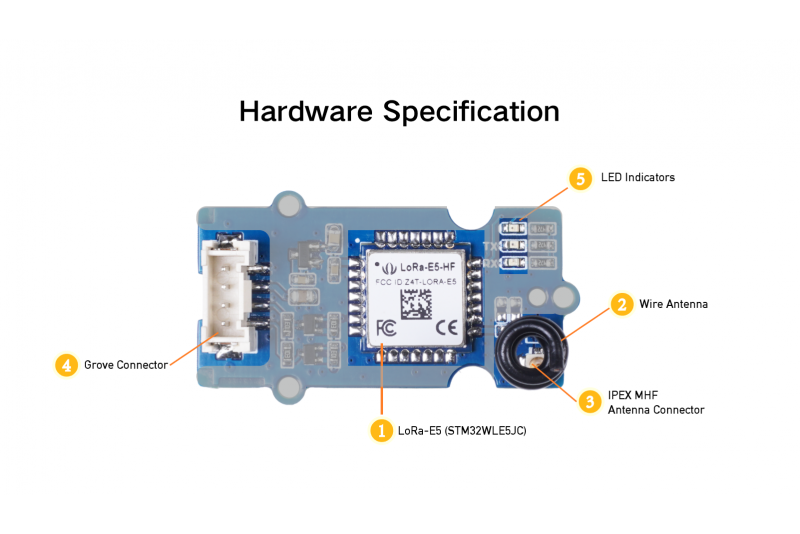

LoRa-E5 LoRaWAN STM32WLE5JC module is the major functional part integrated into Grove - LoRa-E5. It is a LoRaWAN module that embedded with ARM Cortex M4 ultra-low-power MCU core and LoRa SX126x, as the world-first combo of LoRa RF and MCU chip into one single tiny module, it supports (G)FSK, BPSK, (G)MSK, and LoRa modulations, and is FCC, CE certified. Grove - LoRa-E5 features extremely compacted size, ultra-low power consumption, low cost, and amazing performance. (Learn more about LoRa-E5)

Specifications

General Parameters
Voltage Supply: 3.3V / 5V
Power Output: Up to +20 dBm at 3.3V
Working Frequency868MHz / 915MHz
ProtocolLoRaWAN
Sensitivity-116.5dBm ~ -136dBm
ModulationLoRa, (G)FSK, (G)MSK and BPSK
CurrentOnly 60uA in sleep mode
Size20*40mm
Working Temperature-40℃ ~ 85℃

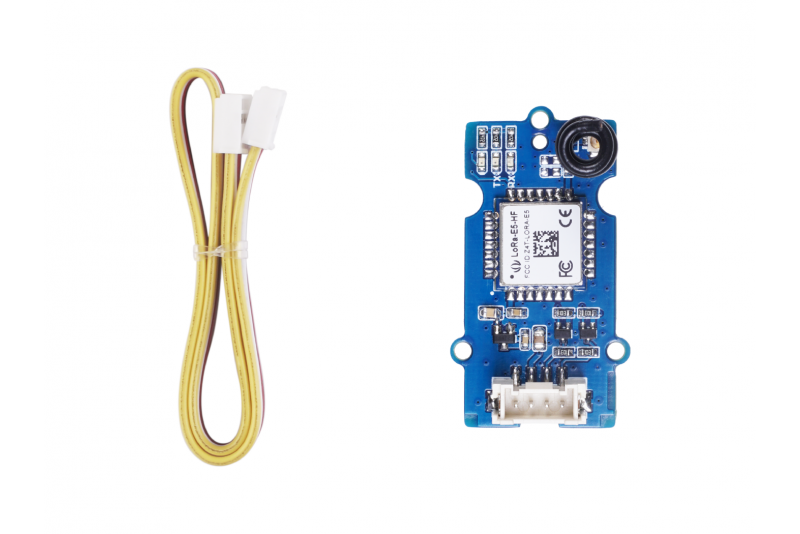

Part List

Grove - LoRa-E5 PCBA *1
Grove Universal Cable *1

Links

Datasheet:

Certifications:

Relevant SDK:

click for more info
ManufacturerSeeed Studio
Manufacturer's model113020091
