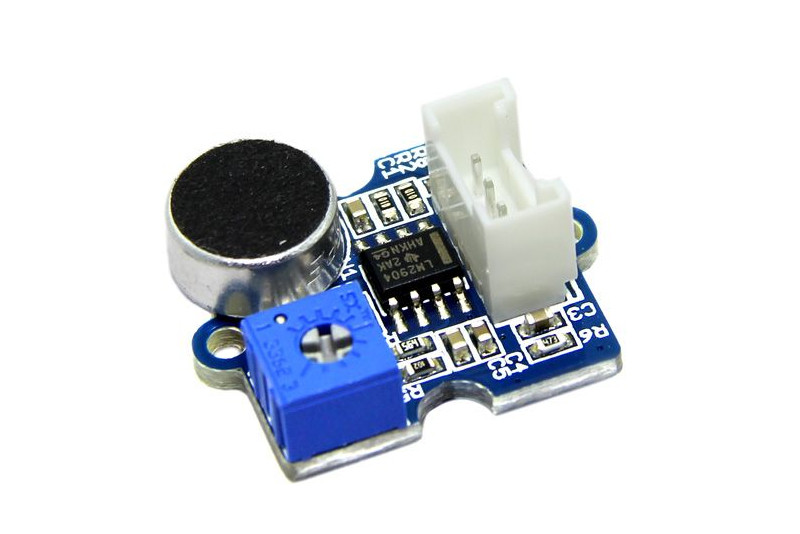

Grove Loudness Sensor View larger

Grove Loudness Sensor

SEEED 101020063

10 Items

In stock

Manufacturer homepage

11,37 €

Seeed Studio 101020063 - Grove - Sound Sensor/ Noise Detector for Arduino

PRODUCT DETAILS

The Grove - Loudness Sensor is designed to detect the loudness of environmental sound. Based on amplifier LM2904 and a built-in microphone, it amplifies and filters the high-frequency signal that received from the microphone, and outputs a positive envelope. This will make for Arduino's signal acquisition. The output value depends on the level of the sound input. In order to avoid unnecessary signal disturbances, the input signal will go through two times filtering inside the module. Lastly, there is a screw potentiometer that enables manual adjustments to the output gain.

Features

  • Grove compatible interface
  • Wide supply voltage range
  • Built-in signal filtering
  • Gain adjustable via screw potentiometer

Technical details

Dimensions24mm x20mm x9.8mm
WeightG.W 9g
BatteryExclude
Voltage3.5~10 VDC
Working Frequency50~2000 Hz
Sensitivity-48~66 dB
Signal-to-noise Ratio>58 dB
Output Signal rangeAnalog Signal (0-1023)

Part List

Grove - Loudness Sensor1

Links

click for more info
ManufacturerSeeed Studio
Manufacturer's model101020063
Measures24 x 20 x 9.8 mm
Weight9g
