Grove VOC and eCO2 Gas Sensor - Arduino Compatible - SGP30

SEEED 101020512

3 Items

In stock

Warning: Last items in stock!

Manufacturer homepage

26,28 €

Seeed Studio 101020512 - Grove - VOC and eCO2 Gas Sensor SGP30 is an air quality sensor(Arduino compatible). Based on SGP30, this module provides TVOC (Total Volatile Organic Compounds) and CO2eq output with outstanding long-term stability and low power consumption, which make it a perfect choice for indoor air quality detection.

PRODUCT DETAILS

Description

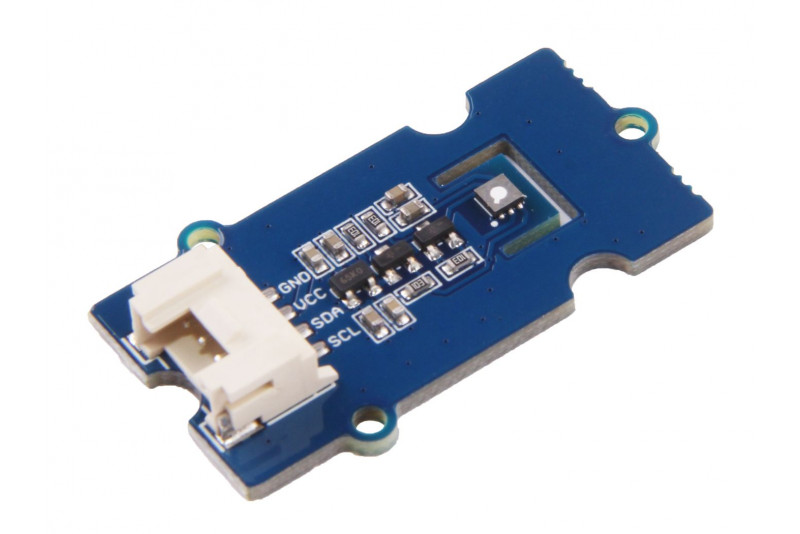

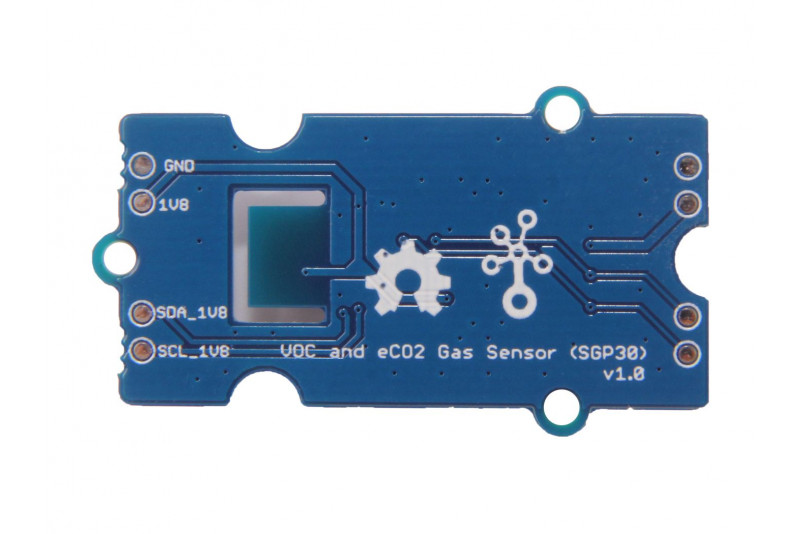

The Grove-VOC and eCO2 Gas Sensor SGP30 is an air quality sensor. Based on SGP30, this module provides TVOC (Total Volatile Organic Compounds) and CO2eq output with outstanding long-term stability and low power consumption, which make it a perfect choice for indoor air quality detection using Arduino or Raspberry Pi.

The Sensirion SGP30 is a digital multi-pixel gas sensor which can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about the air quality.

For more technical information, please refer to Seeed wiki Grove - VOC and eCO2 Gas Sensor(SGP30). Click and check how it works with Raspberry Pi!

Features

  • Multi-pixel gas sensor for indoor air quality applications
  • Outstanding long-term stability
  • I2C interface with TVOC and CO2eq output signals
  • Low power consumption
  • Chip module tape and reel packaged, reflow solderable

Application

  • Indoor air quality monitoring
  • Air purifier
  • Demand-controlled ventilation

Technical details

Dimensions

0mm x0mm x0mm

Weight

G.W 9g

Battery

Exclude

Working Voltage

3.3V/5V

Output range

TVOC-0 ppb to 60000ppb / CO₂eq - 400 ppm to 60000 ppm

Sampling rate

1HZ

IIC address

0X58

Part List

Grove - VOC and eCO2 Gas Sensor (SGP30)

1

Grove cable

1

Links

click for more info
ManufacturerSeeed Studio
Manufacturer's model101020512
Weight9g
