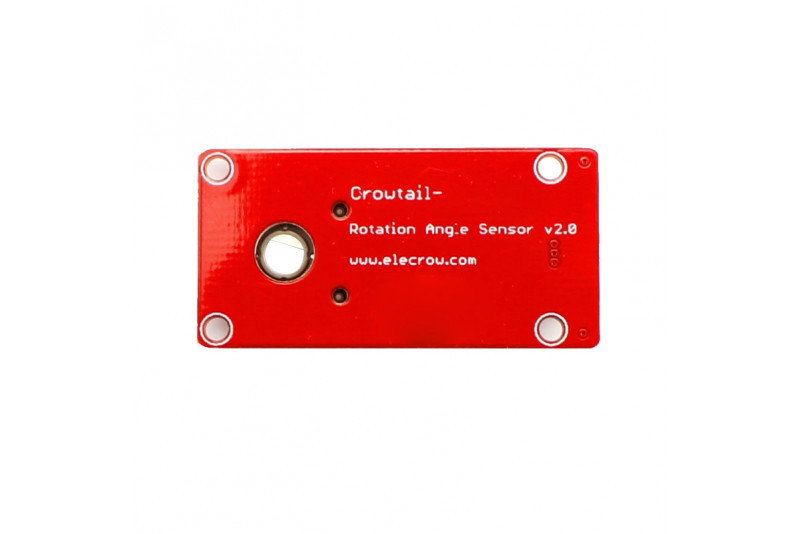

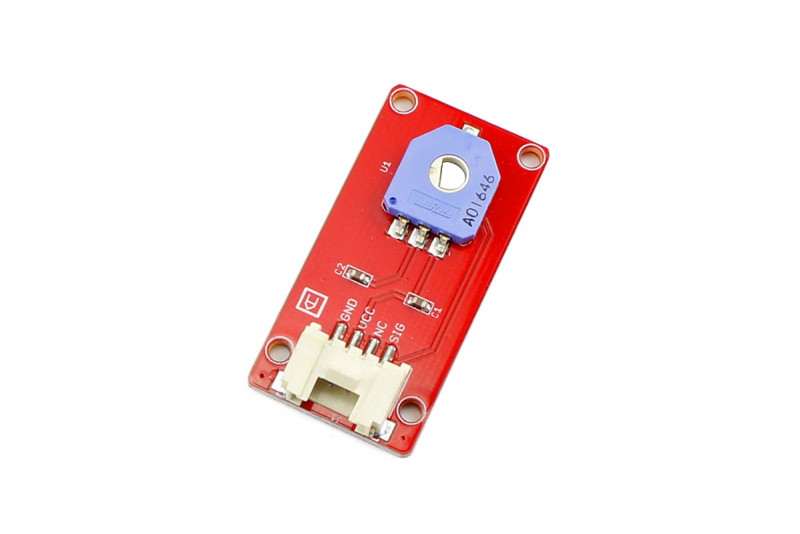

Crowtail Rotation Angle Sensor 2.0

This rotation Angle sensor using the SV01 series of PSV01A, excellent resistance materials and high reliability wiper achieves 1M cycles，dust-proof construction protects the interior from dust, which maintains stable characteristics.

Features

• Dust-proof construction protects the interior from dust, which maintains stable characteristics.
• Easy-to-use Crowtail compatible interface.
• Supports analog interface.
• D formation thru-hole rotor enables selection of any kind of gear shape.

Specifications

• Family: Position Sensors - Angle, Linear Position Measuring
• Series: SV01
• For Measuring: Rotary Position
• Technology: Resistive
• Resistance (Ohms): 10k
• Rotation Angle - Electrical, Mechanical: 0°~333.3°
• Actuator Type: Hole for Shaft
• Linearity: ±2%
• Resistance Tolerance: ±30%
• Mounting Type: Surface Mount
• Termination Style: SMD (SMT) Tab
• Operating Temperature: -40°C ~ 85°C
• Dimensions(mm):40.0(L)x20.0(W)x6.8(H)

Package list

• Crowtail-Rotation Angel sensor x 1

Wiki & External links

• User manual (wiki link)
