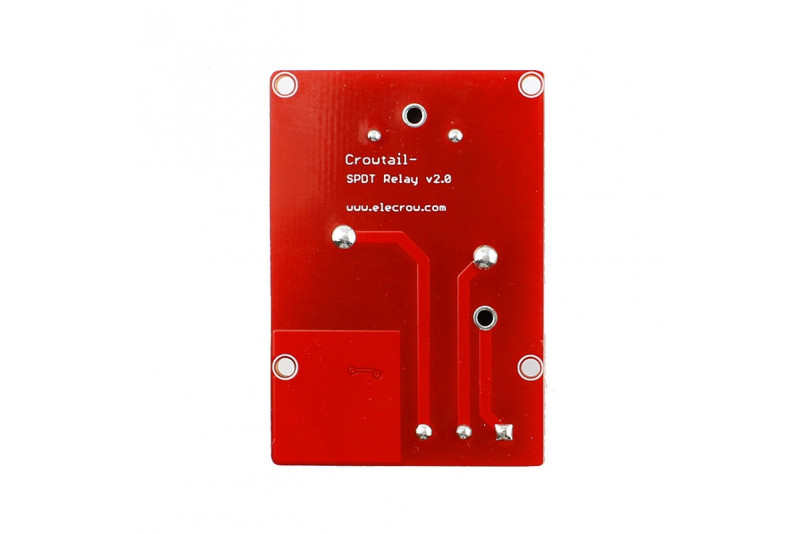

Crowtail SPDT Relay V2.0

Note! Not for professional use. Do not use this device to operate mains voltage devices. Only for voltages under 50VAC/DC.

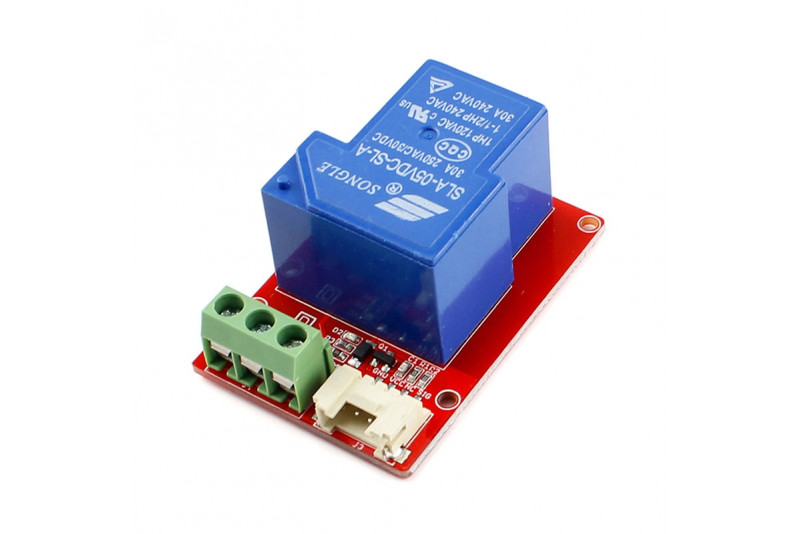

The SPDT relay module is a high performance single pole double throw relay that can operate by as much as 30A of current. When the relay does not work, COM and NC have continuity, when the relay work, COM and NO have continuity.

It can be used as power switches, electric heaters, fans, air conditioners, and a variety of common household switch appliances. When you need to control the high current, it will give you a lot of convenience.

Features

• SPDT Switch
• High current

Specifications

• Operating Voltage: 5V
• Operating Current: 185 mA
• Pull-in Voltage (Max): 3.75 VDC
• Dimensions(mm):50.0(L)x35.0(W)x22.6(H)

Package list

• Crowtail - SPDT Relay x 1
• 4 pin crowtail cable x 1

Wiki & External links

• User manual (wiki link)
