Elecrow DIS25400R - 2.2inch TFT LCD Color Screen Display Module 240X320 Serial Port
This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.
2.2-inch color screen,support 65K color display,display rich colors
320X240 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Name | Parameter |
Display Color | RGB 65K color |
SKU | MSP2202 |
Screen Size | 2.2(inch) |
Type | TFT |
Driver IC | ILI9341 |
Resolution | 320*240 (Pixel) |
Module Interface | 4-wire SPI interface |
Active Area (AA area) | 33.84x45.12(mm) |

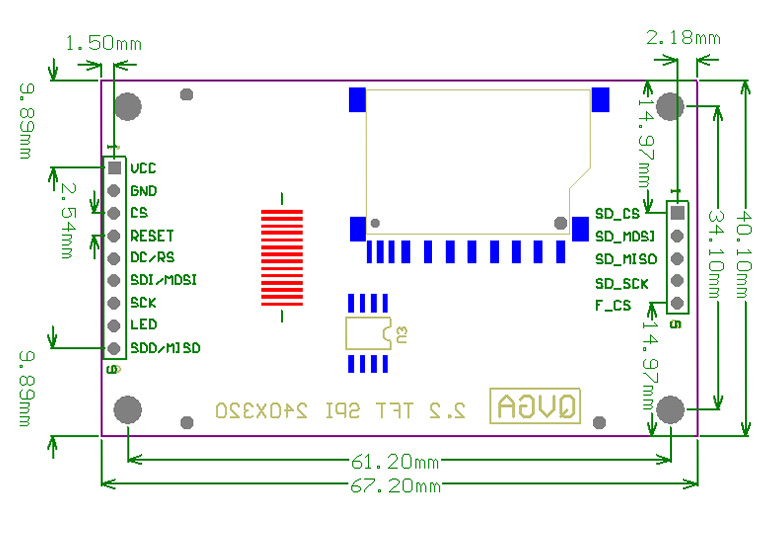

Module PCB Size | 40.10x67.20(mm) |
Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ |
VCC power voltage | 3.3V~5V |
Logic IO port voltage | 3.3V(TTL) |
Power Consumption | TBD |
Rough Weight(Package containing) | 22(g) |
Number | Pin Label | Description |
1 | VCC | 5V/3.3V power input |
2 | GND | Ground |
3 | CS | LCD chip select signal, low level enable |
4 | RESET | LCD reset signal, low level reset |
5 | DC/RS | LCD register / data selection signal, high level: register, low level: data |
6 | SDI/MOSI | SPI bus write data signal |
7 | SCK | SPI bus clock signal |
8 | LED | Backlight control, high level lighting, if not controlled, connect 3.3V always bright |
9 | SDO/MISO | SPI bus read data signal, if you do not need to the read function, you can not connect it |
click for more info | |
Manufacturer | Elecrow |
Manufacturer's model | DIS25400R |
Measures | 67,2 x 40,1 mm |
Size | 2 inches |
Resolution | 320x240 |
Connection | SPI |
