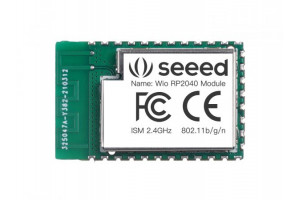

Wio RP2040 Module (RP2040+ESP8285)

PRODUCT DETAILS

Key Features

• Highly integrated Wi-Fi SoC: powerful ESP8285 wifi chip, support 802.11 b/g/n, 2.4~2.4835GHz up to 72.2 Mbps, and Ap&Station mode
• Powerful CPU with high performance: dual-core 133MHZ Raspberry PI RP2040 processor with 264KB SRAM, 2MB Flash, clock running up to 133 MHz
• Flexible Compatibility and User-Friendly: Comprehensive C/C++/MicroPython SDK, software examples and documentation support, C++/Micropython support, Thonny editor compatible
• Extremely compact size: 18.0x 28.2x 1.0mm 32 pins SMT
• Multiple certifications obtained: FCC and CE certification

Description

This rp2040 wifi module supports the Thonny code editor used by Raspberry Pi Pico. You can upgrade your original Pico project to Pico IoT project with a few simple lines of code! And the module adopts the stamp hole package form and small size, you can solder the module on various PCB boards more conveniently.

In addition to the RP2040 + ESP8285 wifi chip combination, the board has rich interfaces, including 32 GPIO PINs (20 PINs support PIO and PWM), 2 UART, 4 ADC, 2 SPI, and 2 I2C. Some pins can be multiplexed, such as GP12 and GP13 with I2C, SPI, and UART functions. This is why 28 GPIO PINs can achieve more I/O PINs and interfaces. The Wio RP2040 module also has a USB PIN, which can be designed and connected to the USB interface.

Specification

Application

• Various Pico projects with wireless functions
• Wireless control application
• Smart Toys - wireless voice-activated toy car
• Various IoT projects - such as smart home, smart air quality monitoring, etc.

Pinout

Links

Wiki Wio RP2040 Module - Build-in Wireless 2.4G
