reComputer J202 Carrier Board

PRODUCT DETAILS

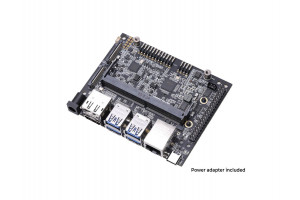

reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX / TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT. There is additional power adapter included.

Please check out Seeed Studio reComputer J2011 edge AI device built with Jetson Xavier NX module, carrier board, and pre-installed Jetpack.

Features

• Perfectly suited: Design for Jetson Nano/Xavier NX/TX2 NX (260-pin SODIMM).
• Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.

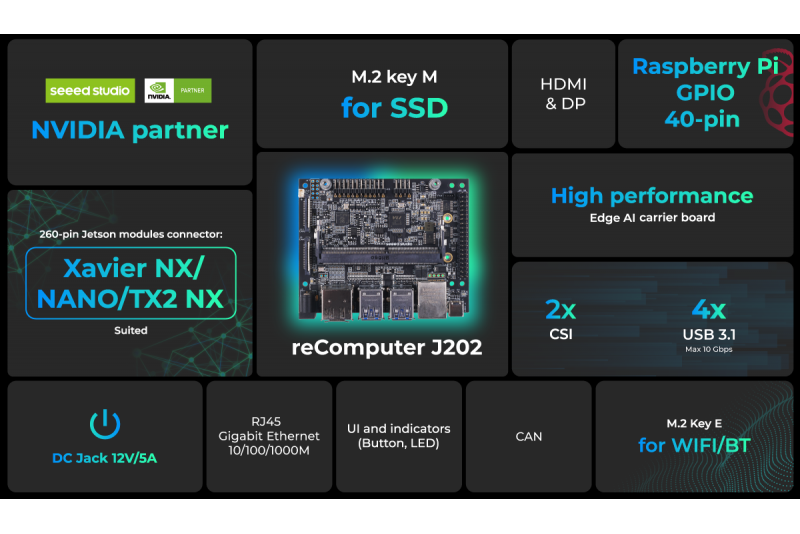

• Rich peripherals: Higher performance stability consists of USB 3.1 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.
• High versatility: Suitable for complicated AI graphical applications.
• Comprehensive certificates: FCC, CE, RoHS(Certification received in early Sept)

Note:

• When using with Jetson Nano module, the M.2 E KEY and CAN cannot work.
• We recommend using 9-12V power adapter, however J202 could support 15V MAX.
• If you want to get started with a Jetson module (flash to eMMC or SSD) under Recovery mode, please check Seeed Studio wiki.

Functionality

With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.

Edge AI Applications

Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.

• Pedestrian detection by Edge Impulse
• Hard hat detection and build custom PPE detection
• Pose Estimation with alwaysAI
• Visual anomaly detection using NVIDIA Deepstream IoT
• Retail store items detection
• Wildfire detection
• Animal detection

Specifications

Part List

• 1 x reComputer J202 Carrier Board
• 1 x 12V/5A Power adapter 5.5mm/2.1mm（power cord not provided）

Note:

• Seeed provide 12V/5A Power adapter, but the power cord is not included
• Seeed will not include a 3V RTC battery.

Links

• reComputer J202 datasheet.pdf
• reComputer J202 PCBA 2D&3D.zip
• [Wiki] Install NVIDIA System based on Seeed Studio J202 Carrier Board
• [Wiki] reComputer Jetson™ Series Guide
