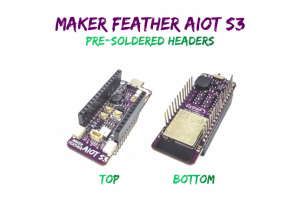

Cytron Maker Feather AIoT ESP32 +HDR

The Maker Feather AIoT S3 is a development platform that allows users to connect wireless IoT devices and use Artificial Intelligence (AI) in their devices. The development platform is based on the ESP32 microcontroller, which includes two 240 MHz processor cores and is equipped with many different interfaces such as Wi-Fi, Bluetooth, and LoRa. This allows connection to various IoT networks and sensors that can be used in remote monitoring, smart home applications, medical devices, and industrial automation.

With Maker Feather AIoT S3, users can also integrate Artificial Intelligence into their devices. The development platform comes with a pre-installed microintelligence platform that enables the use of machine learning in IoT devices. This gives users the ability to process real-time data directly on the device and analyze it using AI.

The development platform also has a built-in charging-protected battery system that allows wireless use of the device. The Maker Feather AIoT S3 is designed to be extremely compact, and its use is easy with programming. This makes it an excellent choice for developers who want to combine IoT devices with Artificial Intelligence in a simple and efficient way.

Features

• Equipped with ESP32-S3 chip
• Single-cell LiPo over/under-charge protection circuit, rechargeable via USB
• 11x status indication LEDs for GPIO pins
• 1x programmable buzzer (connected to GPIO12)
• 1x reset button
• 1x user-programmable button (GPIO3)
• 1x RGB LED (WS2812B Neopixel)
• 3x Maker Ports, compatible with Qwiic, STEMMA QT, and Grove (with conversion cable)
• Support for Arduino, CircuitPython, MicroPython, and Espressif IDF

Shipping

• 1 x Maker Feather AIoT S3 (WITH pre-soldered female headers)
• 3 x Grove to JST-SH (Qwiic / STEMMA QT) Cable

Links

• Maker Feather AIoT S3 Datasheet
• Maker Feather AIoT S3 Schematic
• Maker Feather AIoT S3 CAD File
• ESP32-S3-WROOM-1 Datasheet
• Getting Started with Maker Feather AIoT S3 using Arduino IDE
• Getting Started with Maker Feather AIoT S3 using CircuitPython
• CircuitPython for Maker Feather AIoT S3
• CircuitPython Libraries Bundle
