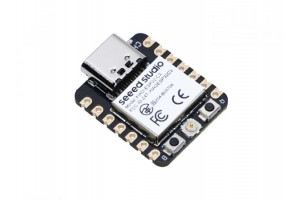

Seeed Studio XIAO ESP32C3

Reference: SEEED 113991054

Currently unavailable

Seeed Studio XIAO Series are diminutive development boards, sharing a similar hardware structure, where the size is literally thumb-sized. The code name "XIAO" here represents its half feature "Tiny", and the other half will be "Puissant".

Seeed Studio XIAO ESP32C3 adopts new RISC-V architecture, supporting both Wi-Fi and BLE wireless connectivities. For Internet of Things applications, you will find it is flexible and suitable for all kinds of IoT scenarios.

The board equips highly-integrated ESP32-C3 SoC. The chip has been installed with a complete 2.4GHz Wi-Fi subsystem which means it supports Station mode, SoftAP mode, SoftAP & Station mode, and promiscuous mode for multiple Wi-Fi applications. It works under an ultra-low power state, also supporting features of Bluetooth 5 and Bluetooth mesh. There are 400 KB SRAM & 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.

Feature

Flexible MCU Board: Incorporate the ESP32-C3 32-bit RISC-V chip, operating up to 160 MHz, mounted multiple development ports, supported by Arduino / CircuitPython
Outstanding RF performance: Implement complete Wi-Fi functions and Bluetooth Low Energy, while supporting communication over 100m with a U.FL antenna
Elaborate Power Design: Provide 4 working modes as low as 44 μA in deep sleep mode, while supporting lithium battery charge management
Thumb-sized Design: 21 x 17.5mm, Seeed Studio XIAO series classic form factor, suitable for wearable devices
Perfect for Production: Breadboard-friendly & SMD design, no components on the back

Application

Internet of Things
Wearable devices
Health monitoring
Education
Low-Power(LP) networking
Rapid prototyping

Specification

Parameter	Description
Processor	ESP32-C3 SoC
RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz
Wireless	Complete 2.4GHz Wi-Fi subsystem
Bluetooth 5.0/ Bluetooth mesh
On-chip Memory	400KB SRAM & 4MB Flash
Interface	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 4x ADC
1x Reset button, 1x Boot button
Dimensions	21 x 17.5mm
Power	Circuit operating voltage: 3.3V@200mA
Charging current: 50mA/100mA
Input voltage (VIN): 5V
Deep Sleep Power Consumption	Deep Sleep Model: >44 μA
Wi-Fi Enabled Power Consumption	Active Model: <75 mA
Modem-sleep Model: <25 mA
Light-sleep Model: <4 mA
BLE Enabled Power Consumption	Modem-sleep Model: <27 mA
Light-sleep Model: <10 mA
