Wio Terminal Chassis - Battery (650mAh)

PRODUCT DETAILS

Description

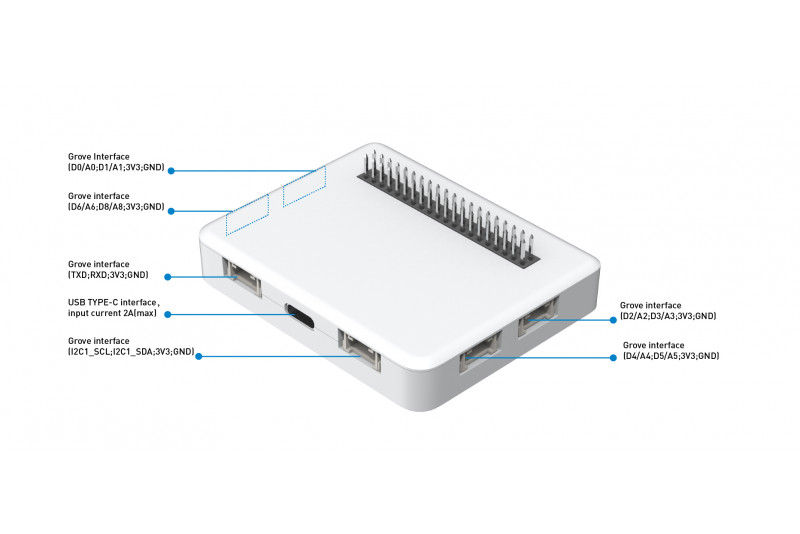

The Wio Terminal Battery Chassis is a must-have extension board for Wio-Terminal Dev Board as it provides an external power source for Wio Terminal to enhance its portability and compactness. It has a 650mAH rechargeable lithium polymer battery, battery charging/discharging status LED, 4 Grove Analog/Digital Ports, 1 Grove I2C Port, and 1 Grove UART Port, as well as the ABS enclosure for aesthetic and protection. There is also the same Raspberry Pi 40-pin compatible GPIO at the back of the Wio Terminal Battery Chassis for more add-ons!

With Wio-Terminal Dev Board + Wio Terminal Battery Chassis, you are able to build the most powerful and compact IoT projects with no ease. With the extended Grove Ports, you can enjoy the plug and play features of the Grove Ecosystem!

The new version battery board built-in BQ27441-G1A fuel gauge for LiPo batteries.

Features

• Built-in 650mAh Rechargeable Lithium Polymer Battery
• Battery charging/discharging status LED
• Battery On/OFF Button
• Built-in BQ27441-G1A fuel gauge for LiPo batteries
• USB Type-C Charging
• Overcurrent protection
• Hiccup mode/Hiccup Protection
• 4 x Grove Analog/Digital Port
• 1 x Grove I2C Port
• 1 x Grove UART Port
• Magnets are hidden inside the enclosure so that it can be stuck on the Whiteboard!

Certifications

• MSDS: Material Safety Data Sheet
• UN38.3: UN38.3 Test Report
• Air/Sea Certification for Safe Transport
• 1.2m Drop Test Report
• RoHS: RoHS Test Report

Specifications

Precautions

• If the battery is unattached, the chassis will switch to failure mode, and the green light blinks at a frequency of 1Hz.
• Please press the button to let the chassis entering sleep mode for safety consideration, and the LED on the backside of the chassis will go off.

Part List

• Wio Terminal Battery Chassis

Links

• Wiki Wio Terminal Chassis - Battery (650mAh)
