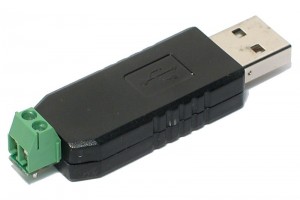

USB 2.0 / RS485-SERIAL PORT View larger

USB 2.0 / RS485-SERIAL PORT

DK USB RS485 B

20 Items

In stock

13,30 €

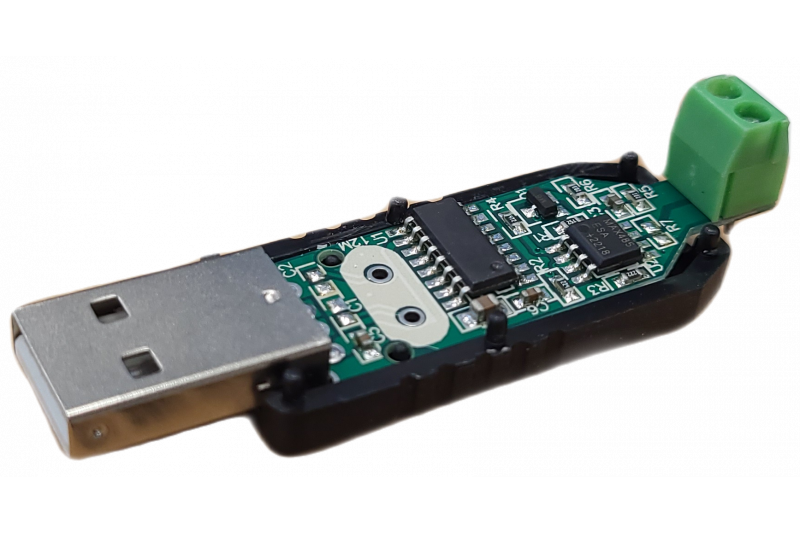

The device is based on the HL-340 chip. The RS485 side is handled by MAX485ESA+. The bus resistor (R7) is unfurnished but a place can be found if needed. The A(-) contact is on the left side of the green connector, facing forward. Remember to connect A - A and B - B.

Below are some of the logos generated by the Linux 3.13 kernel:

ID 1a86:7523 QinHeng Electronics HL-340 USB-Serial adapter usbserial: USB Serial support registered for ch341-uart

EAN4251266701965
Measures60 x 17 x 8 mm
Connector-AUSB type-A
