Teltonika 4G LTE-M1 ADV TRACKER +BT

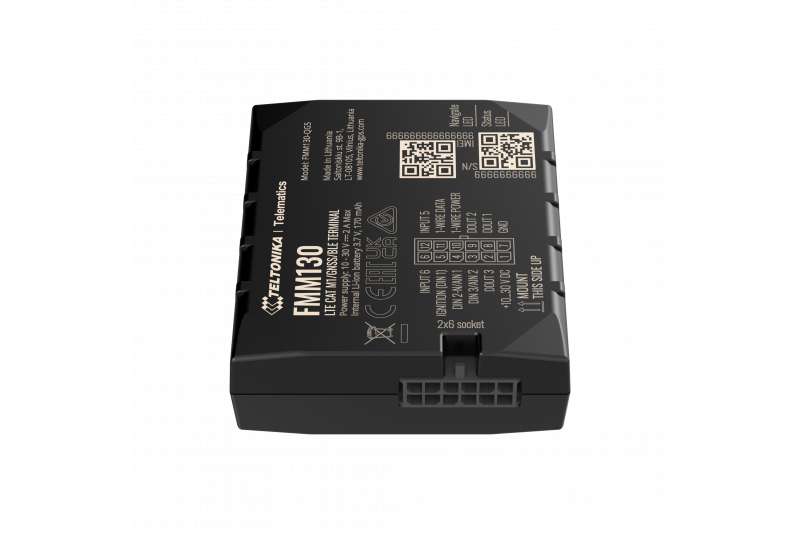

FMM130 is a compact and professionally implemented real-time positioner that offers GNSS and LTE CAT-M1/NB-IoT/GSM connectivity and a backup battery. The device includes GNSS/Bluetooth and LTE CAT-M1/NB-IoT modules that can make use of the 2G backup network when the main network connection is not available. In addition, the device features internal GNSS and LTE antennas, configurable digital and analogue inputs, digital outputs, negative input and pulse inputs.

FMM130 is ideal for situations where location of a specific target is required, such as fleet management, car rental companies, taxi companies, public transport, logistics companies and passenger cars.

Features

• Sensors: Accelerometer
• Usage scenarios: Eco Driving, Over Speeding detection, Jamming detection, GNSS Fuel Monitoring, DOUT Control by Call, Excessive Idling detection, Immobilizer, iButton Read Notifications, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• SMS
• GPRS commands
• Time synchronization
• Fuel monitoring
• Ignition detection, e.g., accelerometer, engine revolutions

Technical Specifications

• Module: Quectel BG95-M3, Quectel BG96, Teltonika TM2500
• Technology: LTE CAT M1/NB-IoT/GSM/GPRS/GNSS/Bluetooth

GNSS

• GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
• Receiver: 33 channels
• Tracking sensitivity: -165 dBM
• Accuracy: < 2.5m CEP
• Velocity accuracy: <0.1m/s (+/- 15% error margin)
• Hot start: < 1 s
• Warm start: < 25 s
• Cold start: < 35 s

Cellular

• Technology: LTE CAT M1/NB-IoT/GSM
• 2G bands: BG95: B2/B3/B5/B8 BG96: B2/B3/B5/B8
• 4G bands: BG95: LTE-FDD (CAT M1): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 LTE-FDD (CAT NB2): B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 BG96: LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B28 LTE TDD: B39 (CAT M1 only)
• Data transfer: BG95: LTE: Max. 588Kbps (DL)/Max.1119Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL) BG96: LTE: Max. 375Kbps (DL)/Max.375Kbps (UL) GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
• Transmit power: Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm
• Data support: SMS (text/data)

Power

• Operating voltage: 10-30 VDC
• Overvoltage protection
• Built-in fuse: 3 A, 125 V
• Backup battery: 170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power Consumption

• 12V < 3 mA (Ultra Deep Sleep)
• 12V < 5 mA (Deep Sleep)
• 12V < 11 mA (Online Deep Sleep)
• 12V < 18 mA (GPS Sleep)
• 12V < 34 mA (nominal with no load)
• 12V < 2A Max. (with full Load / Peak)

Bluetooth

• Bluetooth 4.0 + LE
• Supported features: temperature and humidity sensor, OBDII dongle, headset, Inateck barcode scanner, Universal BLE sensor support

User Interface

• Digital input: 3
• Negative input: 1 (digital input 2)
• Impulse inputs: 2 (digital input 1 and 2)
• Digital output: 3
• Analog input: 2
• CAN adapter input: 1
• 1-wire: 1

• GNSS antenna: Built-in High Gain
• Cellular antenna: Built-in High Gain
• 2.0 Micro-USB
• LED indicator: 2 x status
• Micro-SIM + eSIM
• Memory: 128MB internal flash memory

General Information

• Rating: IP41
• Dimensions (L x W x H): 65 x 56.6 x 20.6 mm
• Weight: 55 g
• Operating temperature: -20°C ... +85°C (With battery ...+40°C)
