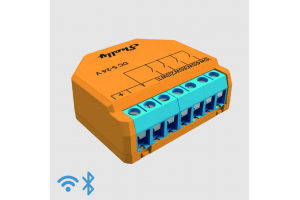

Shelly Plus i4 DC

Shelly Plus i4 controller device for Wi-Fi network. Shelly Plus i4 is a compact controller that enables various functions/scenes between other connected Shelly relays, sensors, or other compatible devices.

Shelly Plus i4 is designed to fit in most power sockets and switches. With the wireless Shelly Plus i4 connected to the network, it can control lighting, curtains, heating, or even air conditioning. When combined with the 4-button Shelly wall switch, it can be programmed with 3 different functions per button.

Note! You will need an electrician's assistance for fixed electrical network installations.

Features

• Wi-Fi - no need for a separate control unit
• Bluetooth support
• Amazon Alexa, Google Assistant support
• Shelly Cloud application - Android and iOS support

Specifications

• Model: Shelly Plus i4
• Nominal voltage: DC: 12-24V
• Power consumption: < 1 W
• Number of channels: 4
• Power measurement: no
• Works without neutral wire: no
• Overload protection: no
• Wireless standard: Wifi 802.11b/g/n, 2.4 GHz
• Operating frequency: 2412 - 2472 MHz
• Radio signal strength: 1 mW
• Transmission power: 14.9 dBm
• MQTT and WSS support
• Operating temperature: -20ºC ... +40ºC
• Range: 50 m outdoors, 30 m indoors
• Dimensions: 42 x 37 x 16 mm
