The RIAA amplifier is required when connecting a turntable directly to a computer sound card or an amplifier that does not have a dedicated input for the turntable (PHONO).
- implemented with separate components
- sturdy metal case with rubber feet 143 x 72 x 38 mm

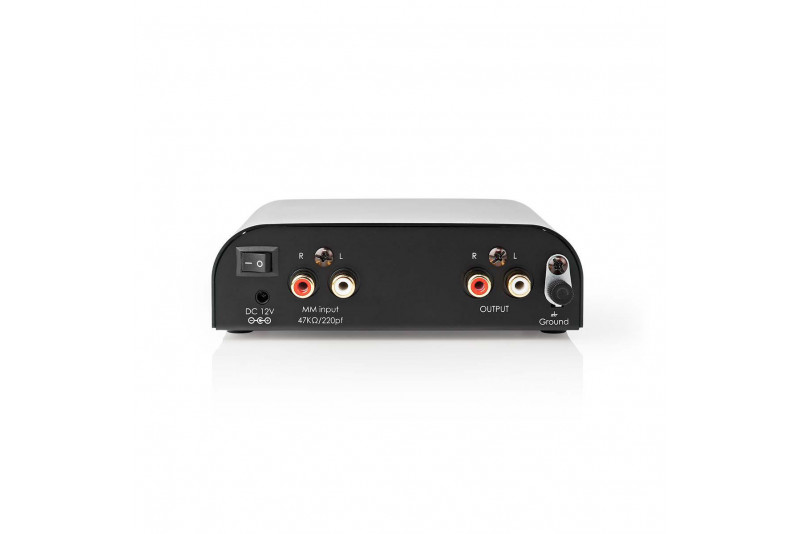

- inputs and outputs with gold-plated RCA connectors
- input impedance: 47kohm 220pF
- THD: <0.05%
- Input sensitivity: 3.0mV
- Output voltage: ~300mV (max. 1.8V)
- SNR: >85dBA
- output impedance: 200ohm
- Supplied with 12VDC 300mA power supply
