ARDUINO SHIELD CNC V3.51/GRBL V0.9 (Pololu)

ARD CDP03051C

4 Items

In stock

Manufacturer homepage

42,46 €

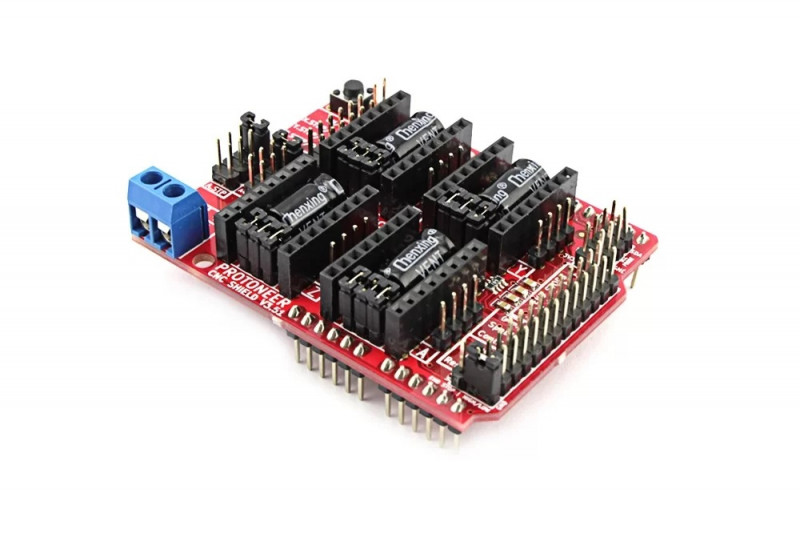

Elecrow CDP03051C - Arduino CNC Shield V3.51 - GRBL v0.9 compatible - Uses Pololu Drivers

Ever wanted to build a small CNC router or CNC milling machine? Love working with Arduino Micro Controllers?
What projects can this be used for?
:Small CNC routers, DIY Laser Cutters, 3D Printers and almost any project where you need to control a stepper motors with high precision.

At Protoneer we designed this simple Arduino CNC shield kit (Arduino Extension Board) with the following features:
New with Version 3.51:

  • Added circuitry for End-Stop and Probe signal filtering. This eliminates false triggers and makes it possible use non-shielded cable for end-stops/probes.
  • Bigger Solder pads making it easier to assemble.
  • Probe pin labels have been updated to make it easier to install a probe.

Features

  • Includes Noise Filers on all endstops and the probing pin.(New in V3.51)
  • GRBL 0.9 compatible. (Open source firmware that runs on an Arduino UNO that turns G-code commands into stepper signals https://github.com/grbl/grbl)
  • 4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins A4 and A3)
  • 2 x End stops for each axis (6 in total)
  • Coolant enable
  • Uses removable Pololu A4988 compatible stepper drivers. (A4988, DRV8825 and others)(Not Included)
  • Jumpers to set the Micro-Stepping for the stepper drivers. (Some drivers like the DRV8825 can do up to 1/32 micro-stepping )
  • Compact design.
  • Stepper Motors can be connected with 4 pin molex connectors or soldered in place. .
  • Runs on 12-36V DC. (At the moment only the Pololu DRV8825 drivers can handle up to 36V so please consider the operation voltage when powering the board.)

Package list

  • Arduino CNC Shield V3.51 - GRBL v0.9 compatible - Uses Pololu Drivers x 1

FREQUENTLY ASKED QUESTIONS

click for more info
ManufacturerElecrow
Manufacturer's modelCDP03051C
CompatibleArduino Uno
