Arduino MKR WiFi 1010 (ABX00023)

ARD ABX00023

23 Items

In stock

Manufacturer homepage

46,30 €

Original Arduino® ABX00023 - Arduino MKR WiFi 1010 - The basic Arduino board to build secure WiFi and Bluetooth® applications.

Overview

Arduino MKR WiFi 1010 is Arduino Iot Cloud compatible.

The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.

See what Massimo Banzi, Arduino Co-founder, has to say about this board in the following video.

The board's main processor is a low power Arm® Cortex®-M0 32-bit SAMD21, like in the other boards within the Arduino MKR family. The WiFi and Bluetooth® connectivity is performed with a module from u-blox, the NINA-W10, a low power chipset operating in the 2.4GHz range. On top of those, secure communication is ensured through the Microchip® ECC508 crypto chip. Besides that, you can find a battery charger, and a directionable RGB LED on-board.

Arduino IoT Cloud

Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

TRY THE ARDUINO IOT CLOUD FOR FREE

Official Arduino WiFi Library

At Arduino they have made connecting to a WiFi network as easy as getting an LED to blink. You can get your board to connect to any kind of existing WiFi network, or use it to create your own Arduino Access Point. The specific set of examples we provide for the MKR WiFi 1010 can be consulted at the WiFiNINA library reference page.

Compatible with other Cloud Services

It is also possible to connect your board to different Cloud services, Arduino's own among others. Here some examples on how to get the MKR WiFi 1010 to connect to:

  • Blynk: a simple project from Arduino community connecting to Blynk to operate your board from a phone with little code
  • IFTTT: see an in-depth case of building a smart plug connected to IFTTT
  • AWS IoT Core: see this example on how to connect to Amazon Web Services
  • Azure: visit this github repository explaining how to connect a temperature sensor to Azure's Cloud
  • Firebase: you want to connect to Google's Firebase, this Arduino library will show you how

Bluetooth® and BLE

The communications chipset on the MKR WiFi 1010 can be both a BLE and Bluetooth® client and host device. Something pretty unique in the world of microcontroller platforms. If you want to see how easy it is to create a Bluetooth® central or a peripheral device, explore the examples at Arduino ArduinoBLE library.

We Make it Open for you to Hack Along

The MKR WiFi 1010 is a dual processor device that invites for experimentation. Hacking the WiFiNINA module allows you to, for example, make use of both WiFi and BLE / Bluetooth® at once on the board. Yet another possibility is having a super-lightweight version of linux running on the module, while the main microcontroller controls low level devices like motors, or screens. These experimental techniques, require advanced hacking on your side. They are possible via modifying the module's firmware that you can find at Arduino github repositories.

BEWARE: this kind of hacking breaks the certification of your WiFiNINA module, do it at your own risk.

Battery Power

Its USB port can be used to supply power (5V) to the board. It has a Li-Po charging circuit that allows the Arduino MKR WiFi 1010 to run on battery power or an external 5 volt source, charging the Li-Po battery while running on external power. Switching from one source to the other is done automatically.

Related Boards

If you are looking at upgrading from previous Arduino designs, or if you are just interested in boards with similar functionality, at Arduino you can find:

  • Arduino Uno WiFi rev2: the education version of the MKR WiFi 1010, with USB-B connector and embedded accelerometer. Read more here.
  • Nano 33 IoT: if you need an even smaller form factor, this board sacrifices the battery connector, but the basic functionality is essentially the same. Visit its product page here.
  • MKR WiFi 1000: can only run WiFi applications, as it includes a different chipset than the MKR WiFi 1010. Read more about it here.

Getting Started

The Getting Started section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

Need Help?

Check the Arduino Forum for questions about the Arduino Language, or how to make your own Projects with Arduino. Need any help with your board please get in touch with the official Arduino User Support as explained in our Contact Us page.

Warranty

You can find here your board warranty information.

Tech specs

The Arduino MKR WiFi 1010 is based on the SAMD21 microcontroller.

MicrocontrollerSAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet)
Radio moduleu-blox NINA-W102 (datasheet)
Board Power Supply (USB/VIN)5V
Secure ElementATECC508 (datasheet)
Supported BatteryLi-Po Single Cell, 3.7V, 1024mAh Minimum
Circuit Operating Voltage3.3V
Digital I/O Pins8
PWM Pins13 (0 .. 8, 10, 12, 18 / A3, 19 / A4)
UART1
SPI1
I2C1
Analog Input Pins7 (ADC 8/10/12 bit)
Analog Output Pins1 (DAC 10 bit)
External Interrupts10 (0, 1, 4, 5, 6, 7, 8,9, 16 / A1, 17 / A2)
DC Current per I/O Pin7 mA
CPU Flash Memory256 KB (internal)
SRAM32 KB
EEPROMno
Clock Speed32.768 kHz (RTC), 48 MHz
LED_BUILTIN6
USBFull-Speed USB Device and embedded Host
Length61.5 mm
Width25 mm
Weight32 gr.

Video

Learn more

ARDUINO DOCS For the full technical documentation, tutorials and much more, visit Arduino Docs

Additional I2C Port

The MKR WiFi 1010 has an additional connector meant as an extension of the I2C bus. It's a small form factor 5-pin connector with 1.0 mm pitch. The mechanical details of the connector can be found in the connector's datasheet.

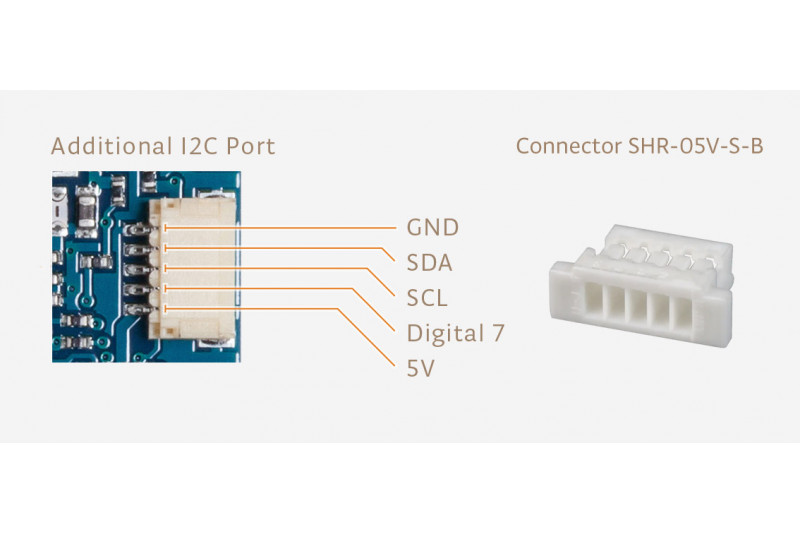

The I2C port, also referred to as the Eslov self-identification port within Arduino, comes with: SDA, SCL, GND, +5V, and an extra digital pin meant to send an alarm to the otherwise plain I2C devices connected to it. The pinout is shown in the following image:

If you are interested in designing your own modules for Arduino boards with this expansion port, the connector we suggest using is code: SHR-05V-S-B, also in the picture.

EAN7630049200258
click for more info
ManufacturerArduino
Manufacturer's modelABX00023
CompatibleArduino MKR
ProcessorARM Cortex-M0+ (SAMD21)
Clock frequency48MHz
Memory RAM32KB
Memory EEPROMnone
Memory FLASH256KB
Network connectionsBT,Wifi
