Rigol RSA5000-VSA OPTION LICENSE

Rigol RSA5000-VSA vector signal analysis option for the RSA5000 series real-time spectrum analyzers. It enables signal modulation analysis and provides advanced tools for studying vector signals.

Key Features of RSA5000-VSA:

• Modulation Analysis
  • Supports common modulation types such as ASK, FSK, PSK, QAM

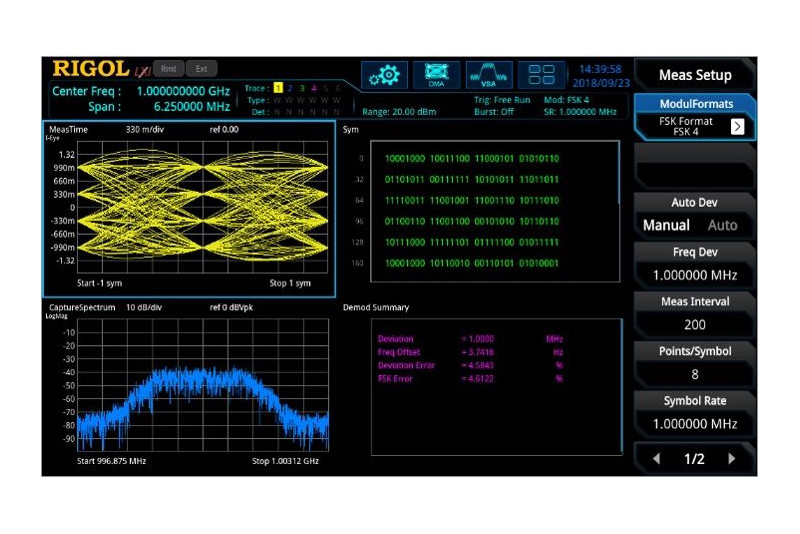

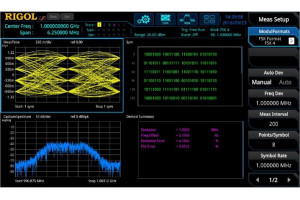

  • Displays the signal's vector constellation, errors, and spectrum
• EVM (Error Vector Magnitude) Analysis
  • Measures modulation accuracy and signal quality
• Real-time Spectrum Analysis
  • Displays the spectrum in real-time, allowing for dynamic signal inspection
• Time and Frequency Analysis
  • Examines the signal in both time domain (I/Q time window) and frequency domain
