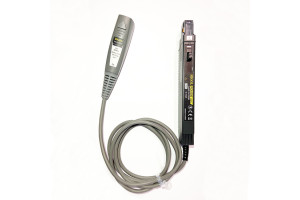

New Rigol PCA1030 View larger

Rigol PCA1030

RGPCA1030

By request only

Manufacturer homepage

5 892,23 €

Rigol PCA1030 - 30A 50MHz General use current probe. Suitable for Rigol DHO4000, DS8000-R, MSO8000/A and MSO/DS7000 series oscilloscopes.

The RP1030 current probe enables standard oscilloscopes to display AC and DC current signals up to a continuous current of 30 A. With the RP1030 current sensor, precise alternating and direct current measurements can be performed over a wide frequency range.

The probe is versatile and compatible with Rigol's DHO4000, DS8000-R, MSO8000/A, and MSO/DS7000 series oscilloscopes.

RP1030 Technical Specifications

FeatureRP1030
Bandwidth (-3 dB)DC - 50 MHz
Maximum Current Measurement30 A RMS continuous, 50 A peak non-continuous
Minimum Measurable Current10 mA
Measurable Conductor Diameter5 mm
OutputBNC
Cable Length1.5 m
Power SupplyRP1000P power supply
Operating Temperature0°C - 40°C

Package Includes

  • 1x User Manual (Chinese and English)
  • 1x RP1030 Current Probe

Links

Note: The previous reference to "RP2030" in the technical specifications appears to be a typographical error and has been corrected to "RP1030" for consistency.

click for more info
ManufacturerRigol
Manufacturer's modelPCA1030
Bandwidth50MHz
ConnectionBNC
