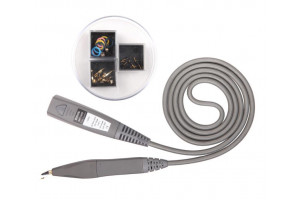

Rigol RP7150S 1.5GHz ACTIVE PROBE

RP7150S is an active probe solution for high-frequency applications.

The RP7000S series uses a plug-in tip to optimize performance and usability. In addition, its interchangeable tip extends the probe's lifespan, and the distance between the tip and the grounding collar can be precisely adjusted to fit the spacing between various test points.

RP7000S is compatible with the automatic detection port of the RIGOL DS8000-R, MSO8000/A, and MSO/DS7002 oscilloscope series, allowing it to be automatically recognized and configured through this port. Its Snap-in BNC connector enables easier connection to the oscilloscope. The RP7000S platform offers various accessories and options, as well as several interchangeable parts, making it suitable for different tests and measurements.

Features

• DC-1.5 GHz bandwidth
• Rise time <265 ps
• Attenuation ratio 10:1 ± 2%
• Input impedance 100 kOhm ± 2%
• Input capacitance <1pF
• Input dynamic range ±6.25V
• Offset range ±12 V
• Offset accuracy <1% (after calibration)
• Maximum input voltage 30 Vpc CAT1
• Input noise 70 mVp-p
• Electrostatic protection >8 kV
• Delay 7 ns
• Cable length 1.4 m
• Power consumption 1.2 W
• Weight 132 g



Kit Includes

• 1 pc User Manual RP7-0601
• 1 pc Storage Case RP7-0603
• 1 pc Probe Carrying Bag RP7-0602
• 1 pc Active Probe Amplifier RP7S-0150
• 1 pc Handheld Single-Head Probe RP7-0205
• 9 pcs 91Ω Probe Tips RP7-0405
• 2 pcs Straight Sharp Ground Collar RP7-0501
• 2 pcs Curved Sharp Ground Collar RP7-0502
• 2 pcs Straight Serrated Ground Collar RP7-0503
• 2 pcs Curved Serrated Ground Collar RP7-0504
• 8 pcs Marking Rings (Yellow/Pink/Light Blue/Dark Blue) RP-0203
• 1 pc Active Probe Calibration Kit PCK100
