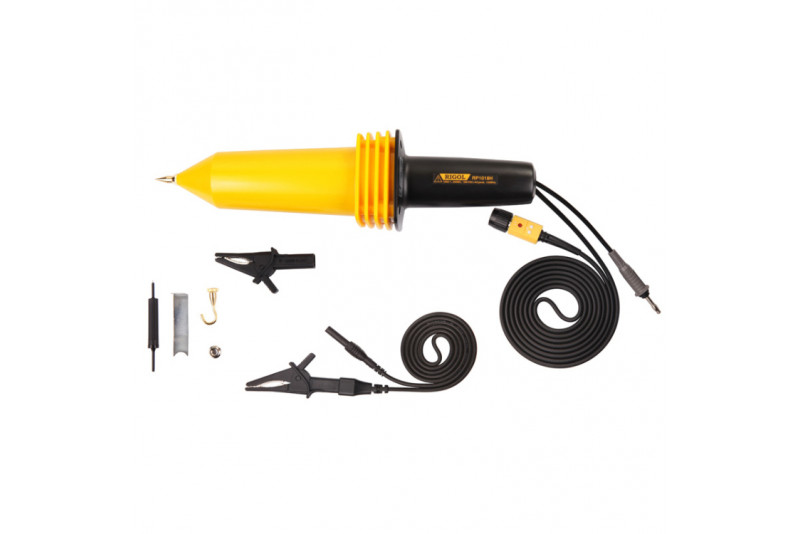

Rigol RP1018H 100MHz 18kV HIGH VOLTAGE PASSIVE PROBE

RGRP1018H

By request only

Manufacturer homepage

1 090,60 €

Rigol RP1018H - 100MHz 18kV 1000:1 Passive general-purpose high voltage Probe compatible with all Rigol oscilloscopes and other brands.

RIGOL RP1010H Passive high voltage probe, 100 MHz bandwidth, 18 kV maximum DC voltage, 1000:1 attenuation ratio.

RP1010H is compatible with all RIGOL oscilloscopes such as DHO900, DHO800, DHO4000, DHO1000, DS70000, DS8000-R, MSO8000/A, MSO/DS7000, MSO5000, and DS1000Z/-E.

Specifications

ModelRP1018H
Division Ratio1000:1
Input Resistance200MΩ
Input Capacitor1.5 PF
Max. Input (DC+AC peak)18kV CAT II
Max. Input (AC RMS)12kV CAT II
Pulse Voltage12kVp-p
Max. Loading Current90uA
BandwidthDC~100MHz
Rise Time3.5 ns
Signal / Noise> 60dB at 1kHz ; > 50dB at 1MHz
DCV Accuracy≤ 3% Full Range
ACV Accuracy≤ 3% at 1 kHz
Temp. Coefficient≤ 200 PPM / ℃
Compensation Range10PF ~ 35PF
SafetyMeets EN61010-031 CAT II
Cable Length2M ± 0.2M
Operation Temperature Range-10 ~ 55℃
Humidity85% RH or less (at 35℃)
Storage Temperature Range-20 ~ 70℃
Color: Handle/BodyBlack / Yellow
Weight / Volume460g / 80(W) x 80(H) x 320(L) mm

Package includes

  • 1x User manual

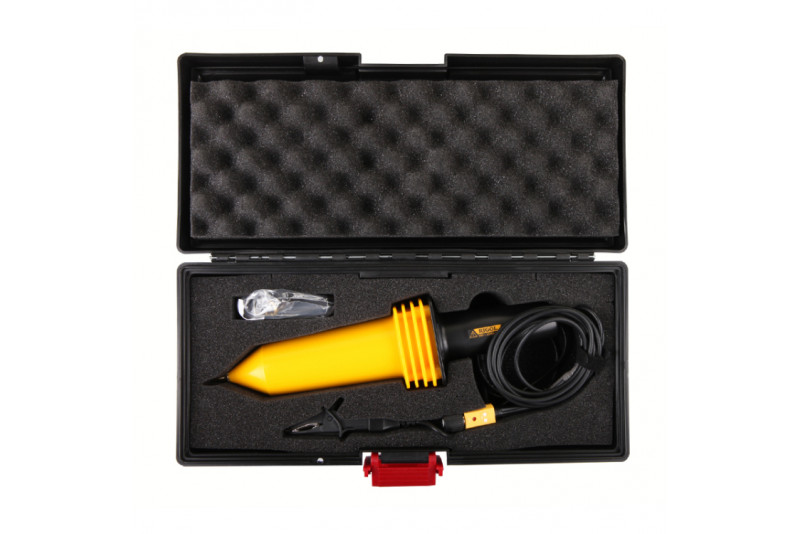

  • 1x Probe storage case
  • 1x Calibration tool
  • 1x Adjustment tool

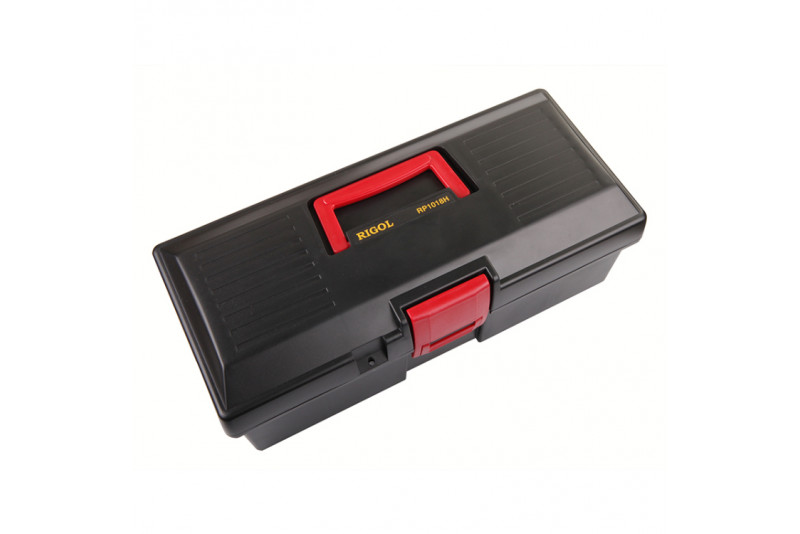

  • 1x Carrying case

Links

click for more info
ManufacturerRigol
Manufacturer's modelRP1018H
Lead time3 weeks
Bandwidth100MHz
ConnectionBNC
