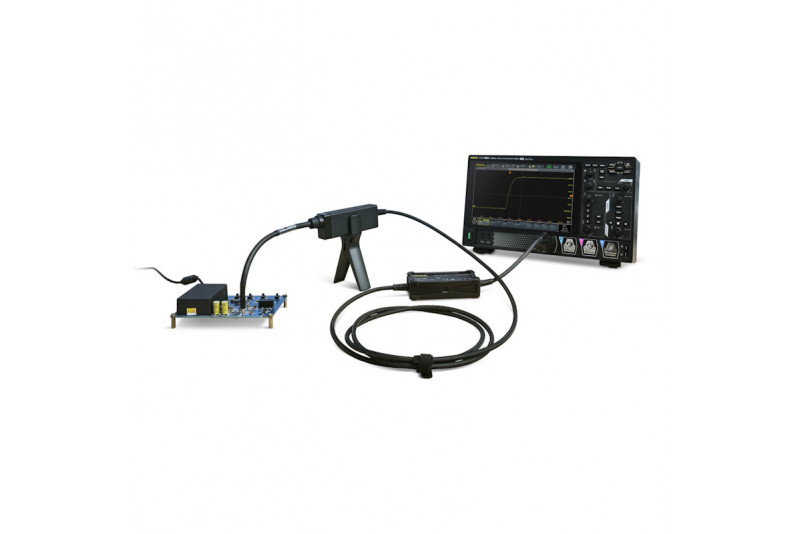

Rigol PIA1050 OPTICALLY ISOLATED PROBE

The Rigol PIA1020 is an optically isolated probe that offers excellent common-mode rejection ratio (CMRR) and high isolation voltage. It supports various attenuation connectors, enabling the measurement of different voltage levels.

Main Features

• Bandwidth: 500 MHz
• Common-Mode Voltage: Up to 85 kV_peak
• Isolated Voltage Range: ±0.01 V – ±2500 V using various attenuation connectors
• Rise Time: Up to 700 ps
• Output Voltage Range: ±500 mV

Included Accessories

• TIP-MMCX-20X-02 attenuation connector
• 5 x MCX adapters (2.54 mm pitch)
• 5 x MCX adapters (5.08 mm pitch)
• MMCX coaxial cable
• MCX coaxial cable
• Carrying case
• Probe stand

Links

• PIA1020 User Manual (pdf)
