New Rigol PHA0150 70MHz HI-VOLTAGE DIFFERENTIAL PROBE View larger

Rigol PHA0150 70MHz HI-VOLTAGE DIFFERENTIAL PROBE

RGPHA0150

By request only

Manufacturer homepage

952,55 €

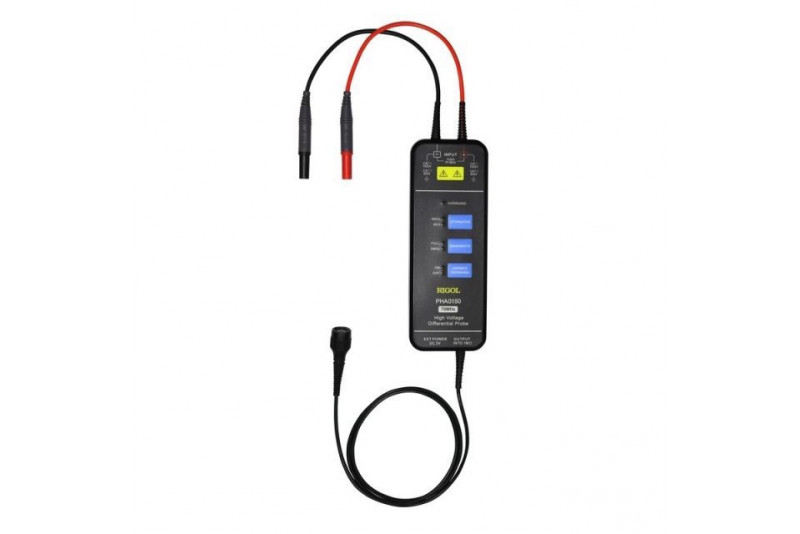

Rigol PHA0150 - 70MHz 1.5kV Universal High Voltage Differential Probe

The Rigol PHA series high-voltage differential probes are designed to measure large voltage differences between two points safely and accurately. Unlike standard probes that measure voltage relative to ground, these probes can measure voltage directly between two live points.

Compatible with Rigol DS8000-R, MSO8000/A, MSO/DS7000, MSO5000, and DS1000Z/-E series oscilloscopes.

PHA0150 Specifications

CharacteristicPHA0150
Bandwidth (-3 dB)70 MHz
Rise Time≤5 ns
Accuracy±2%
Range (Attenuation)50X / 500X
Maximum Measurable Differential Voltage (DC + peak AC)50X: ±150 V
500X: ±1500 V
Common Mode Voltage (DC + peak AC)±1500 V
Maximum Input Voltage-to-Earth (Vrms)600 V CAT III
1000 V CAT II
Input Impedance5MΩ ±1% (each input to ground)
10MΩ ±1% (between differential inputs)
Input Capacitance<4 pF (each input to ground)
<2 pF (between differential inputs)
CMRR (Common Mode Rejection Ratio)DC: >80 dB
100 kHz: >60 dB
1 MHz: >50 dB
3.2 MHz: >30 dB
50 MHz: >26 dB
Input Referred Noise (Vrms)50X: <50 mV
500X: <300 mV
Overrange Voltage Threshold Indicator50X: 153 V ±3 V
500X: 1530 V ±30 V
Delay21 ns
Bandwidth Limit (5 MHz)≥-3 dB @ 5 MHz
Overrange Indicator (Red)Yes
Audible Overrange AlarmYes (ON/Off switch)
Auto SaveYes
Output Impedance50 Ω
Safety StandardsEN61010-1:2010
EMC StandardsEN61326-1:2013; EN61000-3-3:2013; EN61000-3-2:2006+A1:2009+A2:2009

Package Contents

  • 1x User Guide (Chinese & English)
  • 1x AC power adapter (compliant with the destination country's standard)
  • 1x Dual-BNC coaxial cable, 50Ω impedance, RG58C UL, 100 cm
  • 2x High-voltage dual-banana plug silicone cables, UL 20KV, 16AWG, 60 cm
    • 1x Red
    • 1x Black
  • 2x High-voltage IC hooks, maximum 6500V (DC+AC p-p)
    • 1x Red
    • 1x Black
  • 2x High-voltage alligator clips, UL 1000V CAT II, 10A
    • 1x Red
    • 1x Black
  • 2x Safety contact probe hooks, UL 1000V, CAT III
    • 1x Red
    • 1x Black

Link

PHA series User Manual (pdf)

click for more info
ManufacturerRigol
Manufacturer's modelPHA0150
Lead time3 weeks
Bandwidth70MHz
ConnectionBNC
